| Connector Type | Plug, Male Pins |
| Number Of Positions | 19 |
| Qualification | MIL-DTL-26482 Series I |
| Shell Size – Insert | 14-19 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Gold |
| Color | Olive Drab |
| Ingress Protection | Environment Sealed |
| Features | Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |

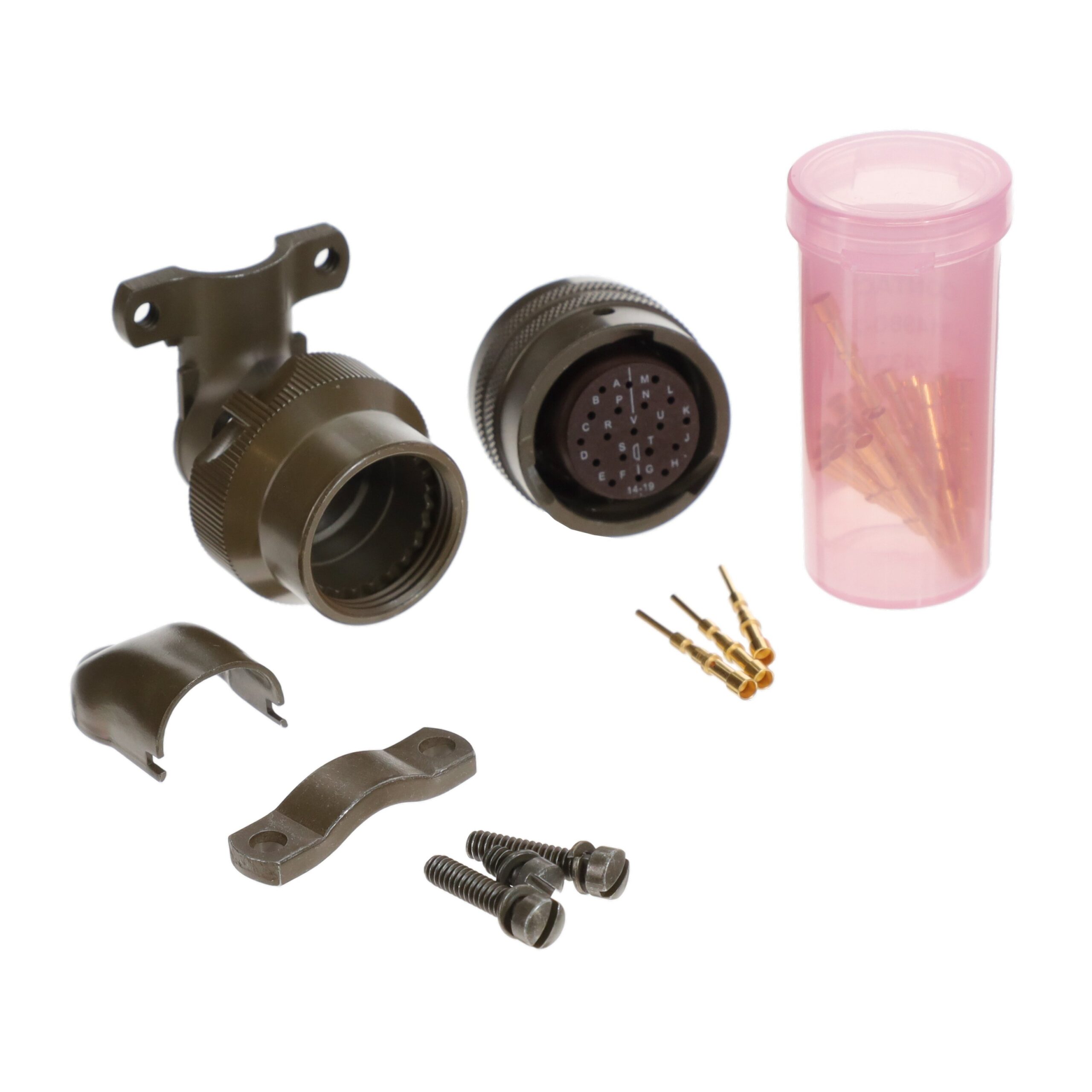

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PT08SE14-19P(SR)
Manufacturer: Amphenol Industrial Operations
Part Number: PT08SE14-19P(SR)
Description: 19 Position Circular Connector Plug, Male Pins Crimp
Datasheet: PT08SE14-19P(SR) – Datasheet
$99.87
| Quantity | Price |
|---|---|
| 5 | $99.87 |
| 10 | $97.02 |
| 25 | $93.03 |
| 50 | $64.70 |
| 100 | $63.43 |
| 250+ | $62.21 |
