| Connector Type | Plug, Female Sockets |
| Number Of Positions | 5 |
| Qualification | MIL-DTL-26482 Series I |
| Shell Size – Insert | 14-May |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Gold |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |

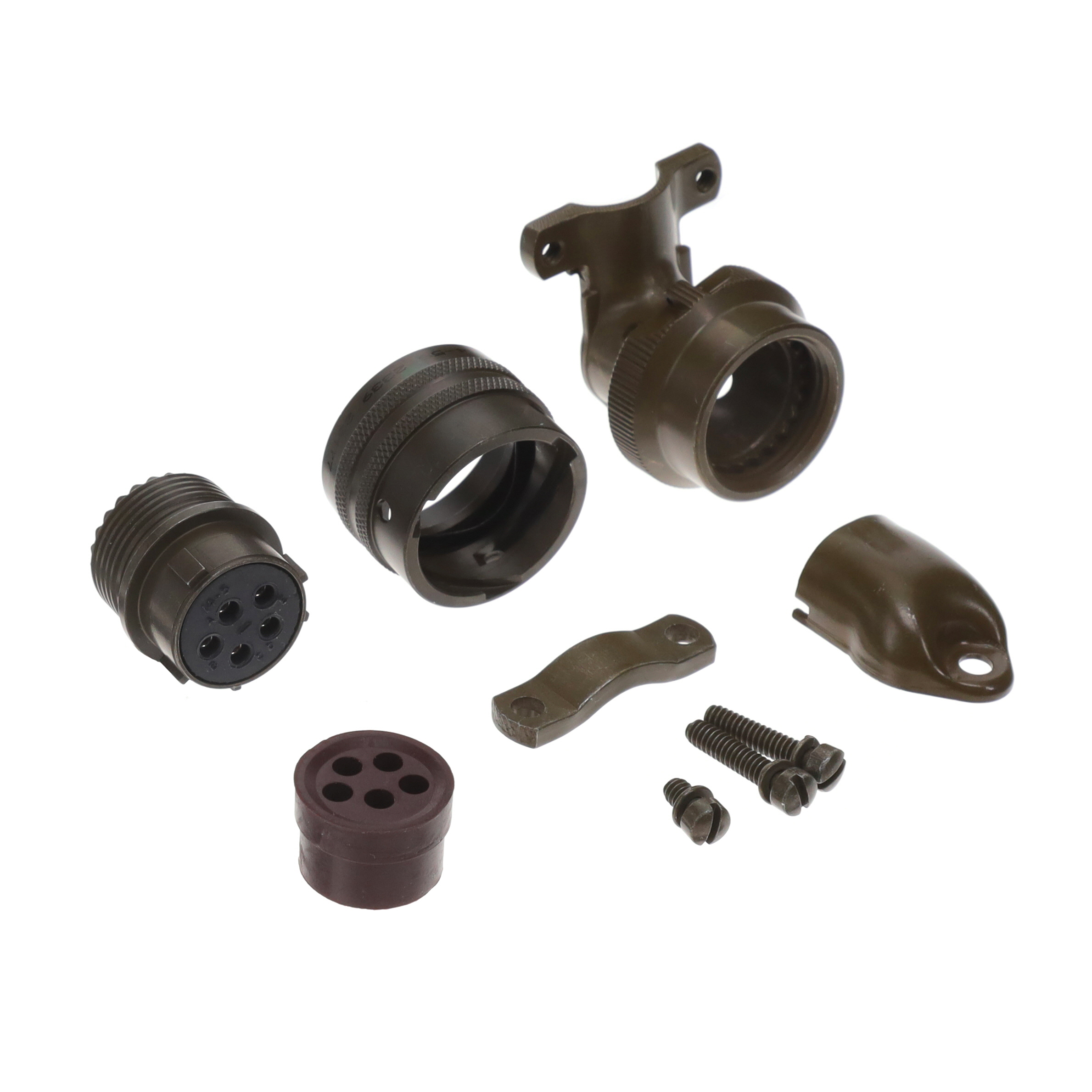

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PT08E14-5S
Manufacturer: Amphenol Industrial Operations
Part Number: PT08E14-5S
Description: 5 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: PT08E14-5S – Datasheet
$87.16
| Quantity | Price |
|---|---|
| 5 | $87.16 |
| 10 | $84.67 |
| 25 | $81.19 |
| 50 | $79.02 |
| 100 | $77.47 |
| 250+ | $75.98 |
