| Connector Type | Plug, Male Pins |
| Number Of Positions | 3 |
| Qualification | MIL-DTL-26482 Series I |
| Shell Size – Insert | 12-Mar |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Gold |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |

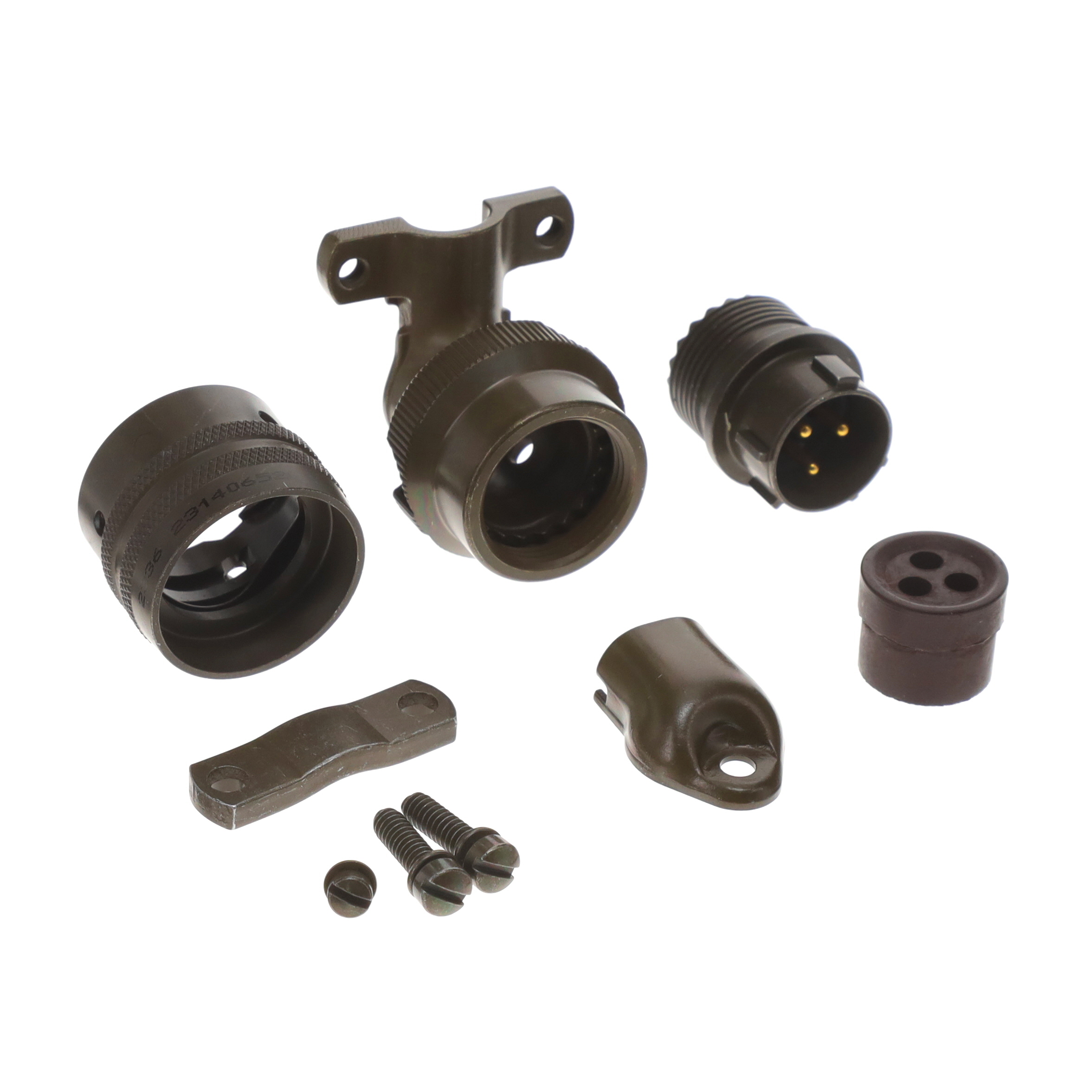

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PT08E-12-3P(SR)
Manufacturer: Amphenol Industrial Operations
Part Number: PT08E-12-3P(SR)
Description: 3 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: PT08E-12-3P(SR) – Datasheet
$86.97
| Quantity | Price |
|---|---|
| 5 | $86.97 |
| 10 | $84.48 |
| 25 | $81.01 |
| 50 | $78.85 |
| 100 | $77.31 |
| 250+ | $75.82 |
