| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Input Voltage | 85 ~ 264 VAC |
| DC Input Voltage (Min) | 127V |
| DC Input Voltage (Max) | 360V |
| Output Voltage 1 | 24V |
| Output Current | 3.2A |
| Power | 77W |
| Isolation Voltage | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.85" L x 1.25" W x 4.88" H (123.2mm x 31.8mm x 124.0mm) |
| Approval Agency | CB, CE, cULus, cURus, UKCA |
| Standard Number | 60950-1; 62368-1; UL 508 |

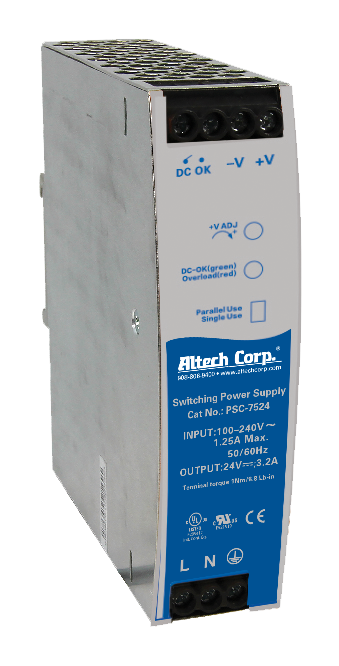

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PSC-7524
Manufacturer: Altech Corporation
Part Number: PSC-7524
Description: AC/DC DIN RAIL SUPPLY 24V 77W
Datasheet: PSC-7524 – Datasheet
$107.18
| Quantity | Price |
|---|---|
| 1 | $107.18 |
| 5 | $105.13 |
| 10+ | $103.81 |
