| Connector Type | Plug, Female Sockets |
| Number Of Positions | 4 |
| Qualification | MIL-5015 |
| Shell Size – Insert | 18-Oct |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |

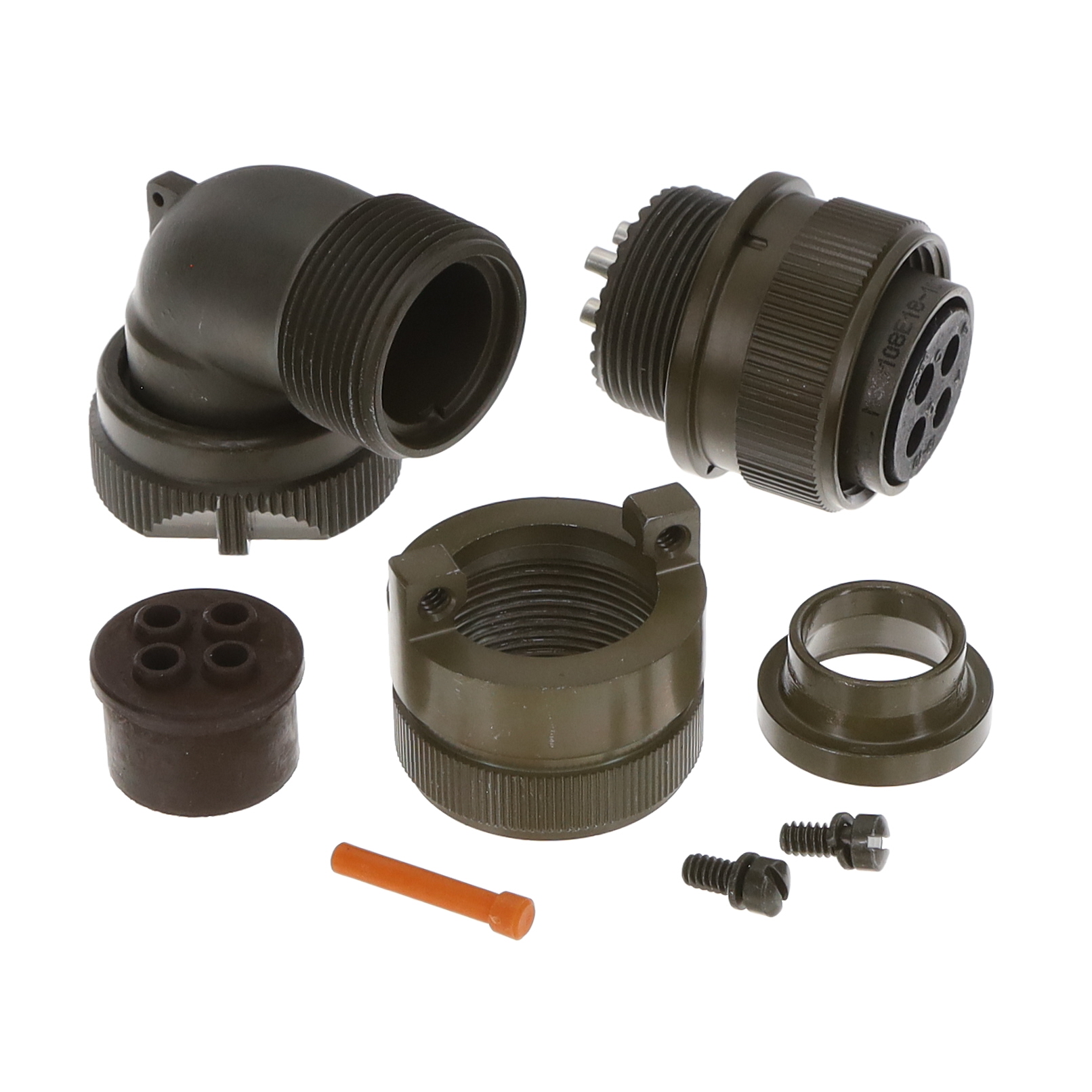

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3108E18-10S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3108E18-10S
Description: 4 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: MS3108E18-10S – Datasheet
$33.61
| Quantity | Price |
|---|---|
| 5 | $33.61 |
| 10 | $32.65 |
| 25 | $31.31 |
| 50 | $30.47 |
| 100 | $29.88 |
| 250+ | $29.30 |
