| Connector Type | Plug, Female Sockets |
| Number Of Positions | 4 |
| Qualification | MIL-5015 |
| Shell Size – Insert | 32-17 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Cable Opening | 1.156" (29.36mm) |

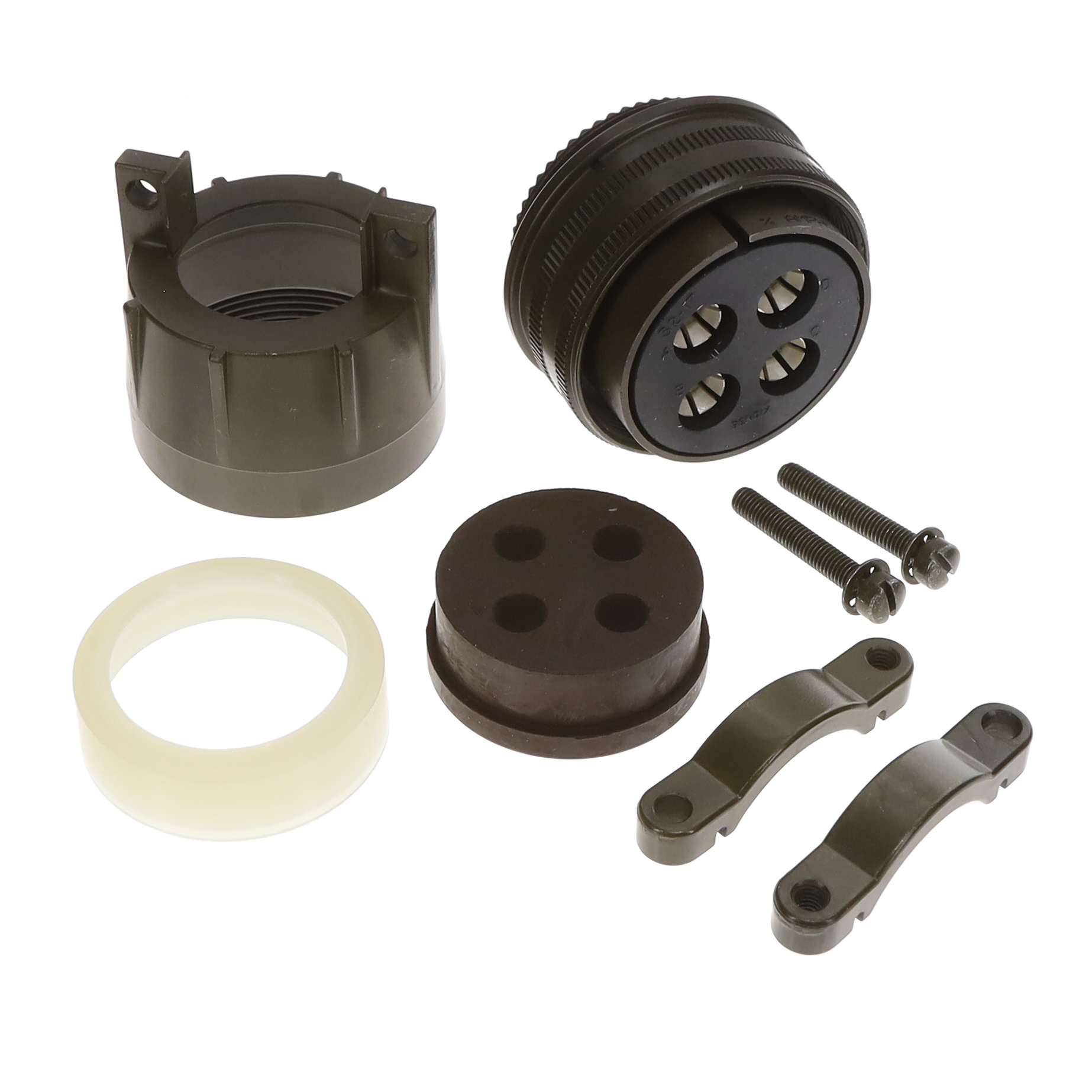

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3106E32-17S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3106E32-17S
Description: 4 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: MS3106E32-17S – Datasheet
$119.57
| Quantity | Price |
|---|---|
| 5 | $119.57 |
| 10 | $116.16 |
| 25 | $111.38 |
| 50 | $108.41 |
| 100 | $106.29 |
| 250+ | $104.24 |
