| Connector Type | Plug, Female Sockets |
| Number Of Positions | 14 |
| Grade | Military |
| Qualification | MIL-DTL-5015 |
| Shell Size – Insert | 20-27 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |

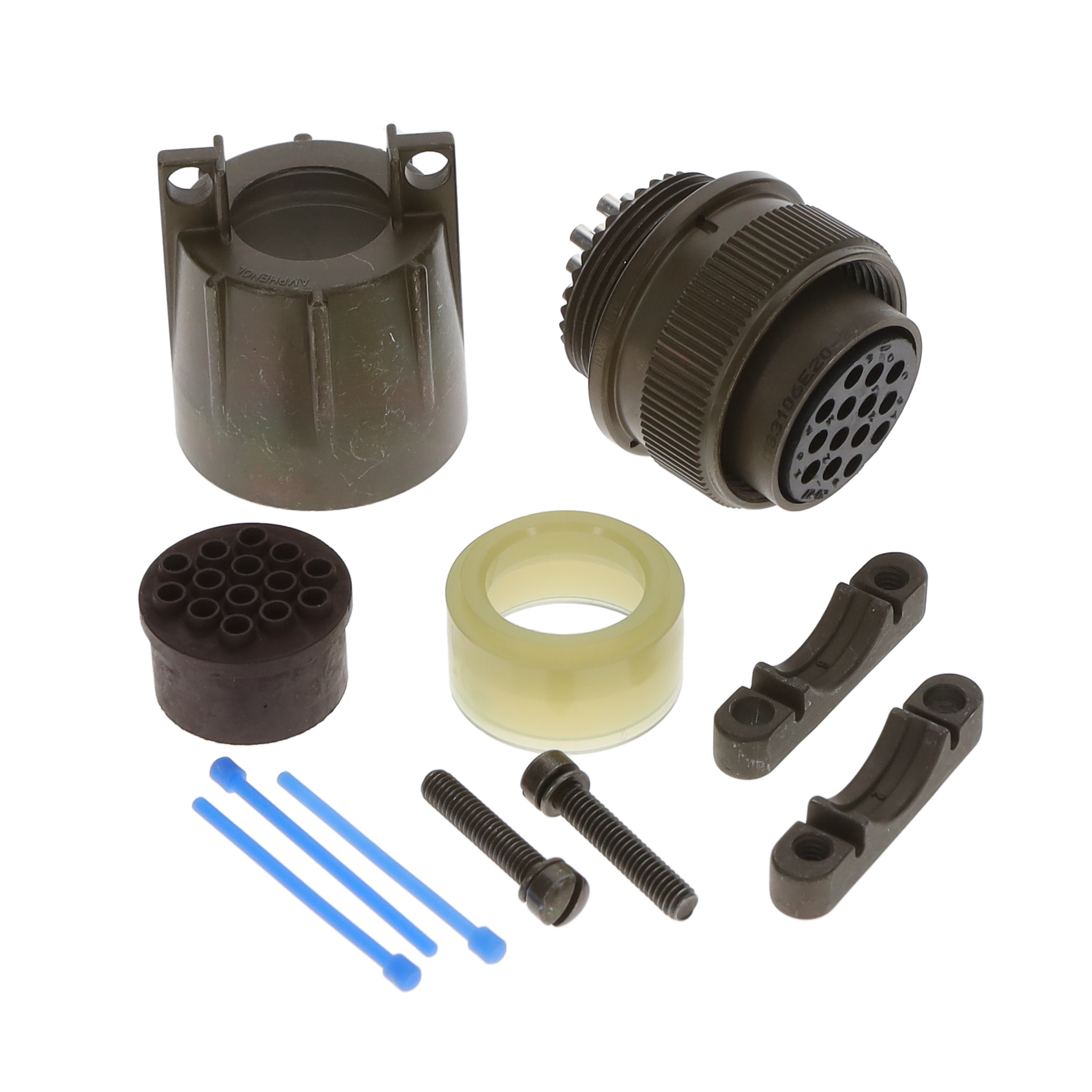

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3106E20-27S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3106E20-27S
Description: 14 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: MS3106E20-27S – Datasheet
$25.35
| Quantity | Price |
|---|---|
| 5 | $25.35 |
| 10 | $24.63 |
| 25 | $23.61 |
| 50 | $22.98 |
| 100 | $22.53 |
| 250+ | $22.10 |
