| Connector Type | Plug, Female Sockets |
| Number Of Positions | 10 |
| Qualification | MIL-5015 |
| Shell Size – Insert | 18-Jan |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Cable Opening | 0.531" (13.50mm) |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

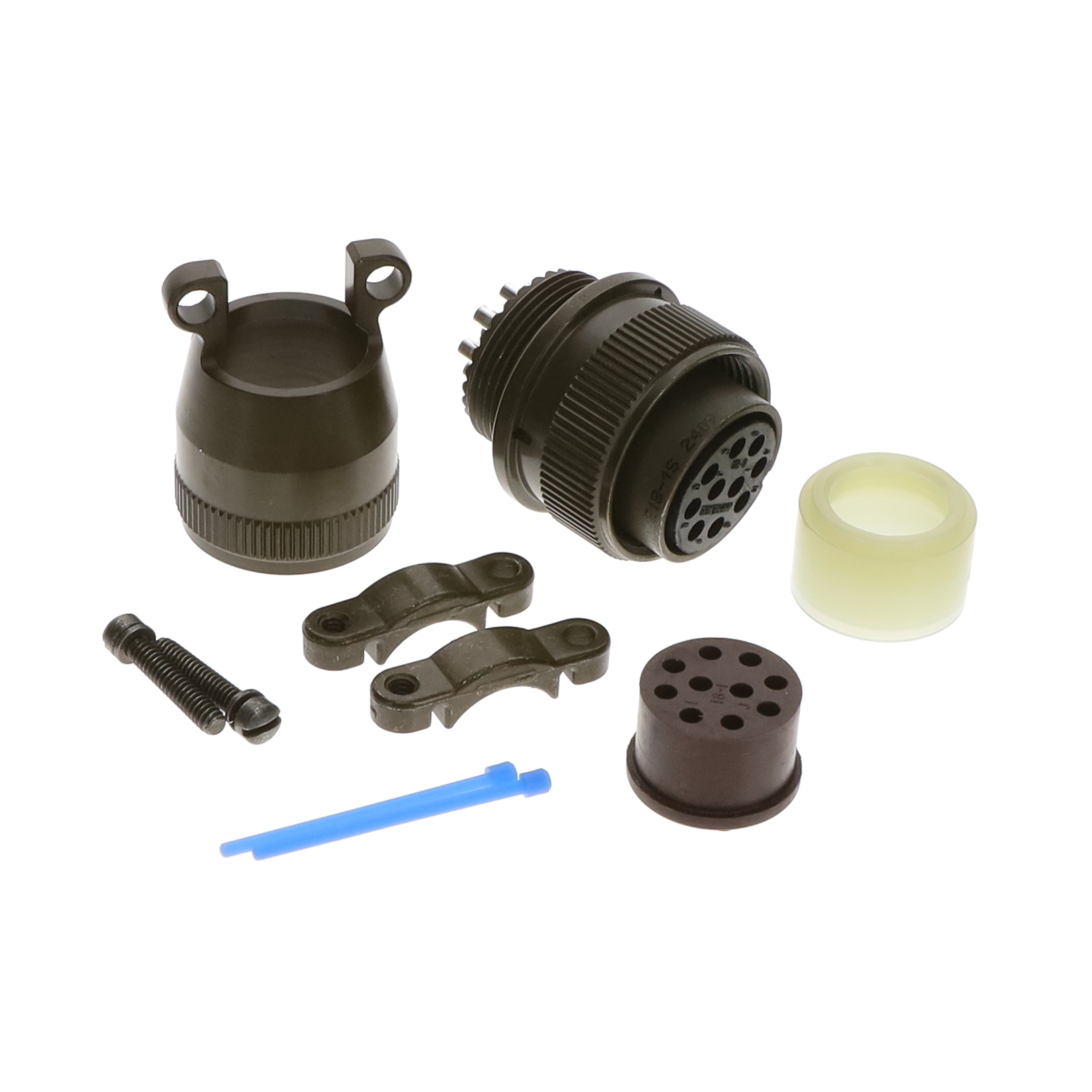

MS3106E18-1S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3106E18-1S
Description: 10 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: MS3106E18-1S – Datasheet
$22.11
| Quantity | Price |
|---|---|
| 5 | $22.11 |
| 10 | $21.48 |
| 25 | $20.59 |
| 50 | $20.04 |
| 100 | $19.65 |
| 250+ | $19.27 |
