| Connector Type | Plug, Female Sockets |
| Number Of Positions | 6 |
| Qualification | MIL-5015 |
| Shell Size – Insert | 18-Dec |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Cable Opening | 0.531" (13.50mm) |

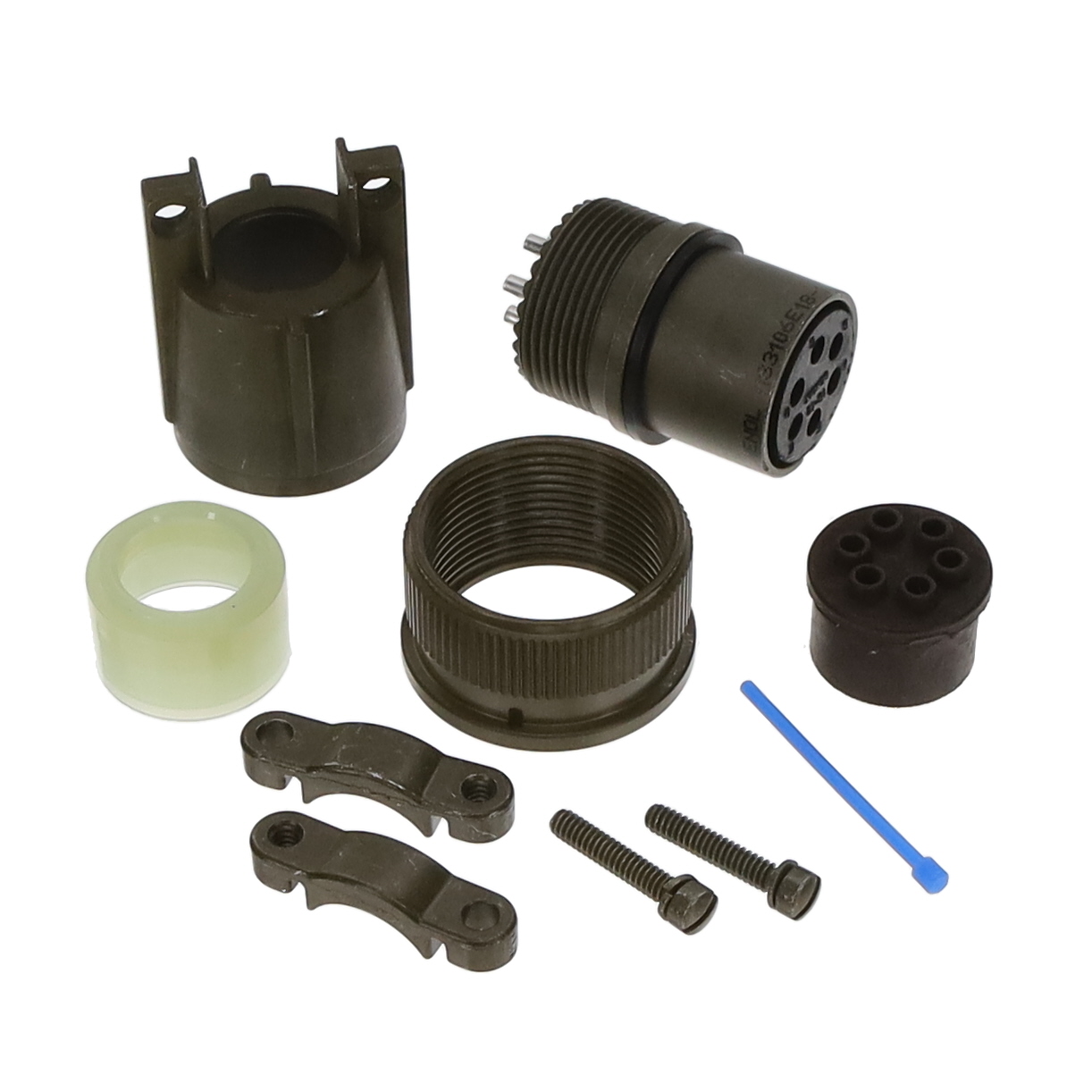

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3106E18-12S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3106E18-12S
Description: 6 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: MS3106E18-12S – Datasheet
$17.66
| Quantity | Price |
|---|---|
| 5 | $17.66 |
| 10 | $17.15 |
| 25 | $16.45 |
| 50 | $16.01 |
| 100 | $15.69 |
| 250+ | $15.39 |
