| Connector Type | Plug, Male Pins |
| Number Of Positions | 3 |
| Qualification | MIL-5015 |
| Shell Size – Insert | 14S-1 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Shielding | Unshielded |
| Cable Opening | 0.406" (10.30mm) |

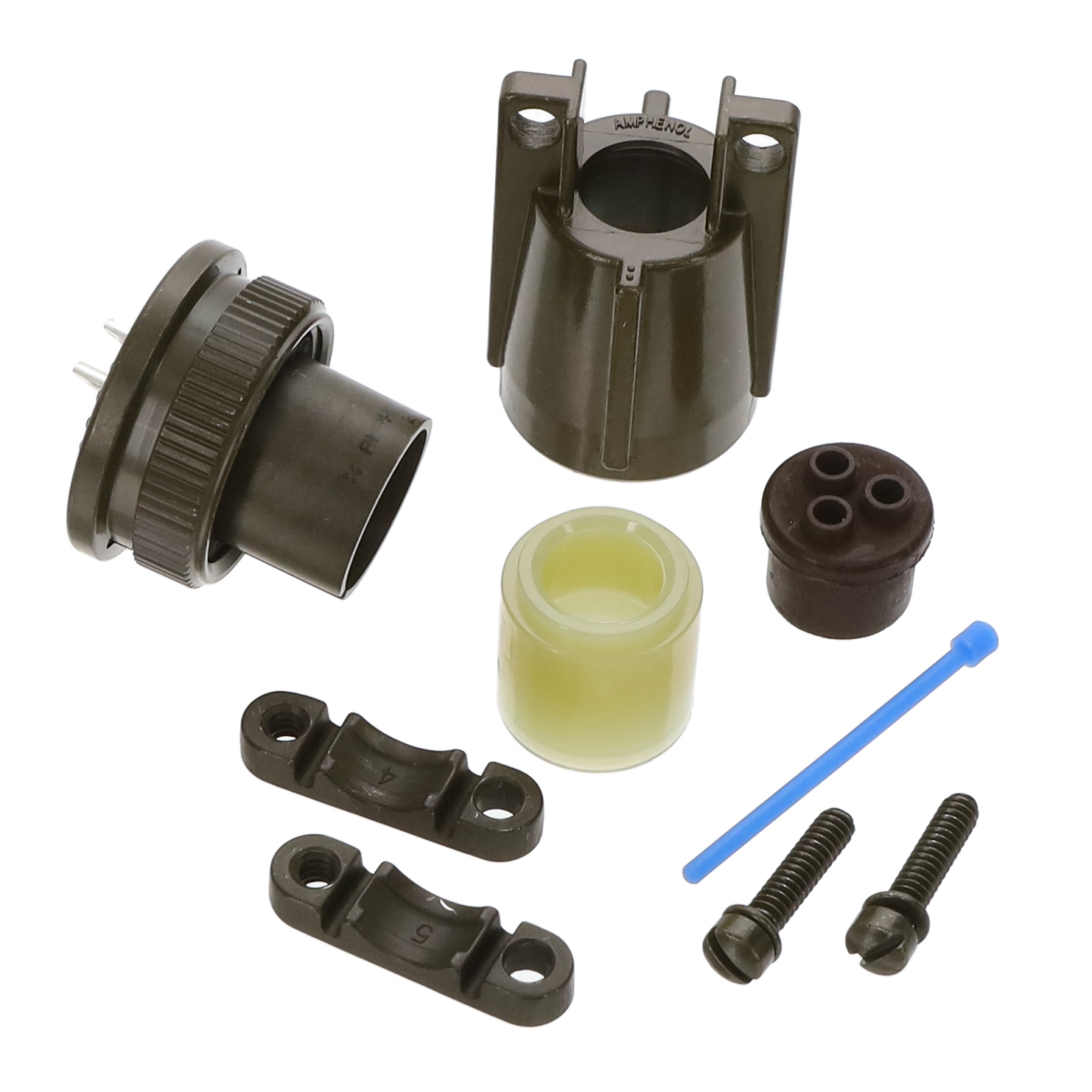

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3106E14S-1P
Manufacturer: Amphenol Industrial Operations
Part Number: MS3106E14S-1P
Description: 3 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: MS3106E14S-1P – Datasheet
$27.00
| Quantity | Price |
|---|---|
| 5 | $27.00 |
| 10 | $26.23 |
| 25 | $25.15 |
| 50 | $24.48 |
| 100 | $24.00 |
| 250+ | $23.54 |
