| Connector Type | Plug, Female Sockets |
| Number Of Positions | 8 |
| Qualification | MIL-DTL-5015 |
| Shell Size – Insert | 22-23 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |

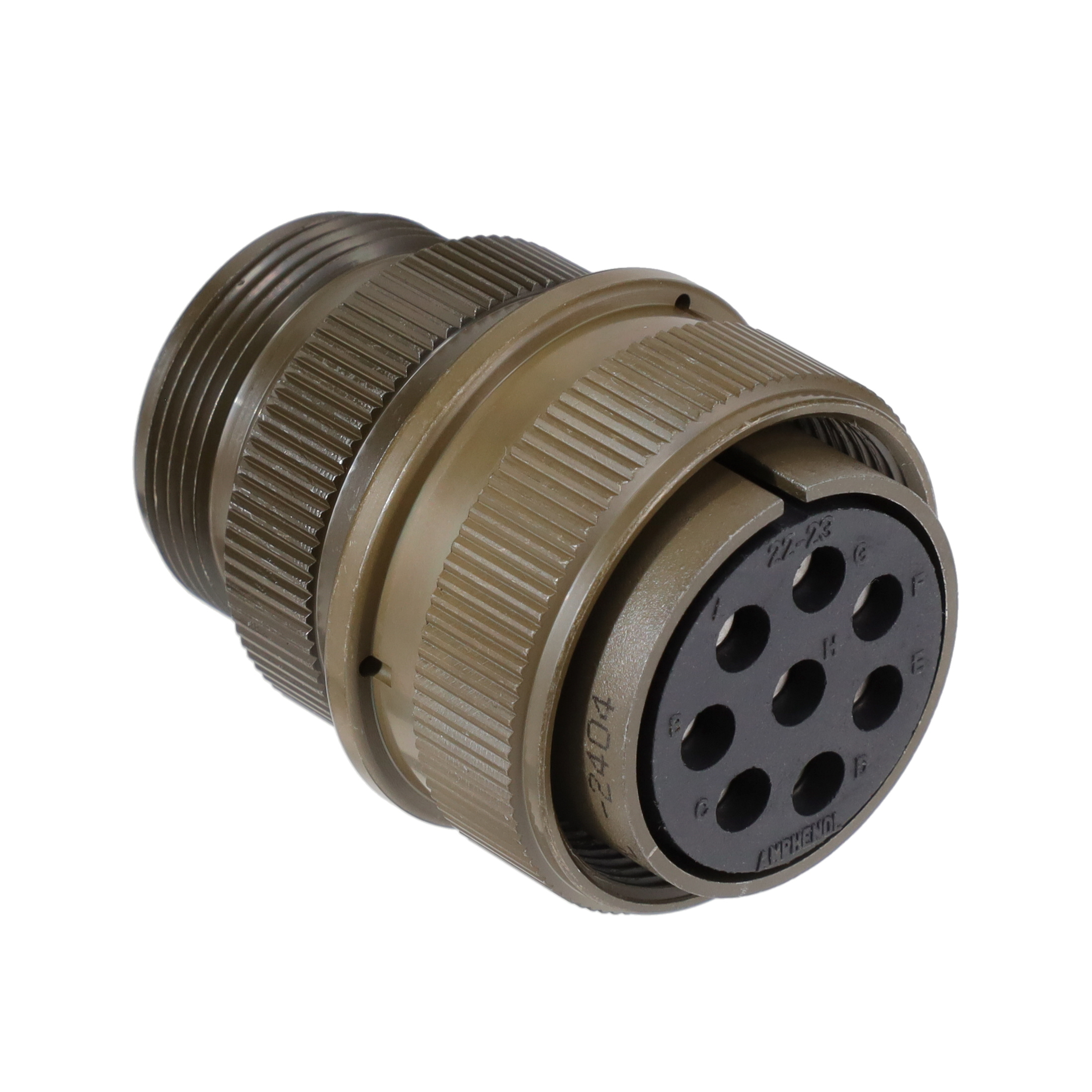

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3106A22-23S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3106A22-23S
Description: 8 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: MS3106A22-23S – Datasheet
$41.32
| Quantity | Price |
|---|---|
| 5 | $41.32 |
| 10 | $40.14 |
| 25 | $38.49 |
| 50 | $37.46 |
| 100 | $36.73 |
| 250+ | $36.02 |
