| Connector Type | Receptacle, Female Sockets |
| Number Of Positions | 7 |
| Grade | Military |
| Qualification | MIL-DTL-5015 |
| Shell Size – Insert | 16S-1 |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Shielding | Unshielded |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

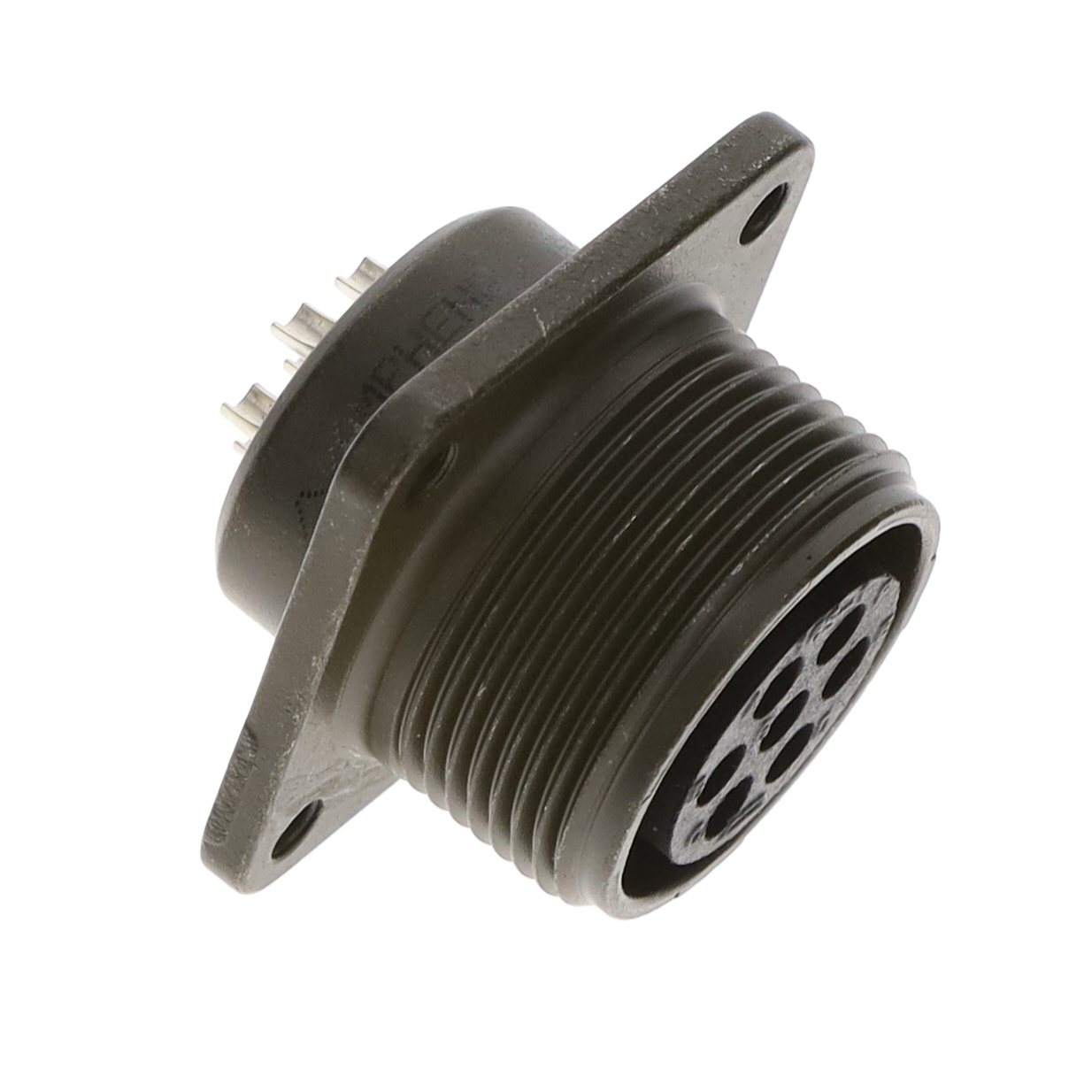

MS3102E16S-1S
Manufacturer: Amphenol Industrial Operations
Part Number: MS3102E16S-1S
Description: 7 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet: MS3102E16S-1S – Datasheet
$10.86
| Quantity | Price |
|---|---|
| 5 | $10.86 |
| 10 | $10.55 |
| 25 | $10.11 |
| 50 | $9.84 |
| 100 | $9.65 |
| 250+ | $9.47 |
