| Connector Type | Receptacle, Male Pins |
| Number Of Positions | 7 |
| Grade | Military |
| Qualification | MIL-DTL-5015 |
| Shell Size – Insert | 16S-1 |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Shielding | Unshielded |
| Cable Opening | 0.875" (22.22mm) |

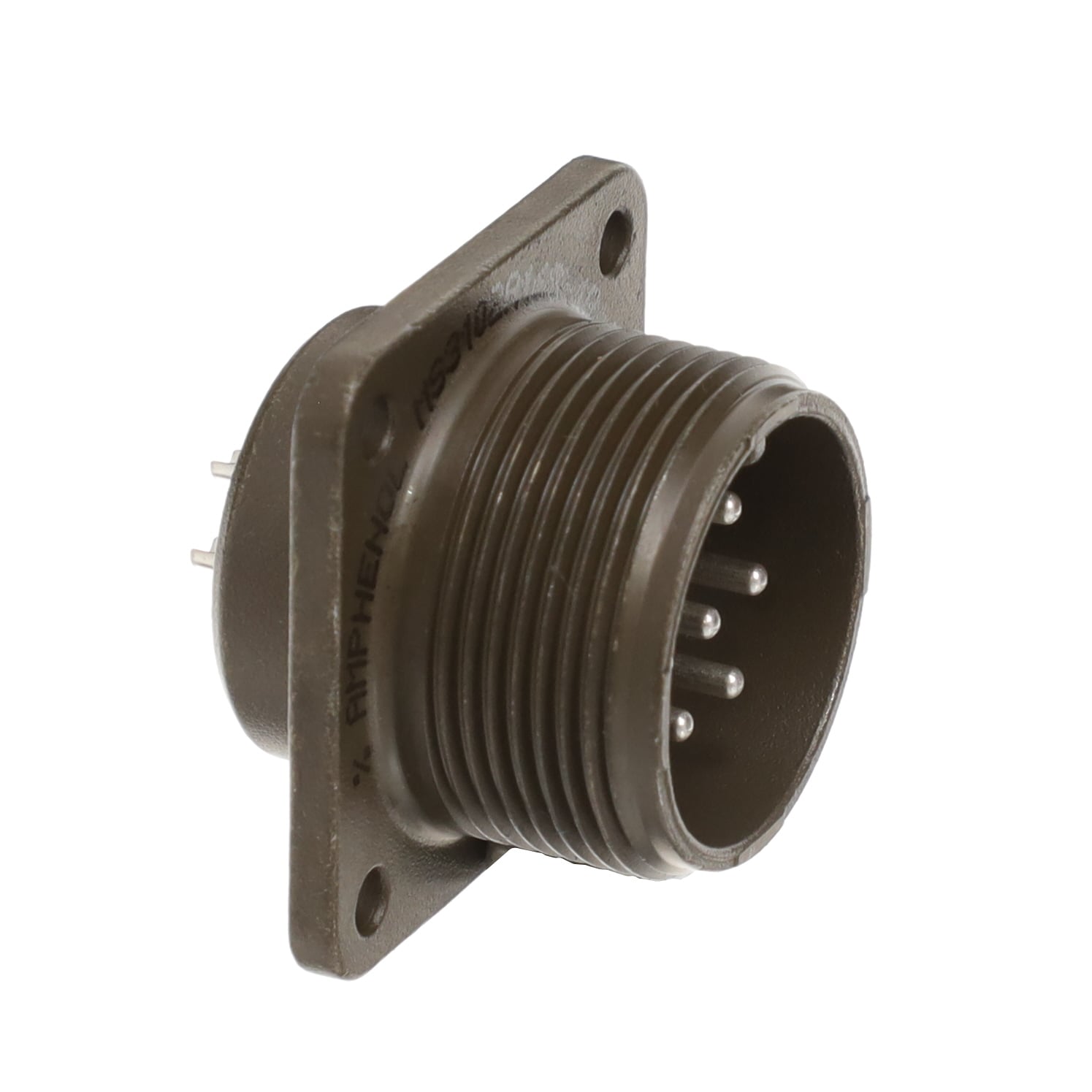

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS3102A16S-1P
Manufacturer: Amphenol Industrial Operations
Part Number: MS3102A16S-1P
Description: 7 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet: MS3102A16S-1P – Datasheet
$9.47
| Quantity | Price |
|---|---|
| 5 | $9.47 |
| 10 | $9.20 |
| 25 | $8.82 |
| 50 | $8.59 |
| 100 | $8.42 |
| 250+ | $8.26 |
