| Series | MN |
| Part Status | Active |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 0.5A (DC) |
| Voltage Rating – AC | 250 V |
| Voltage Rating – DC | 125 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 – Dust Tight, Water Resistant |
| Features | Actuator Seal Boot |
| Operating Force | 600gf |
| Release Force | 100gf |
| Pretravel | 2mm |
| Differential Travel | 0.8mm |
| Overtravel | 5mm |
| Operating Temperature | -10°C ~ 80°C |
| Electrical Life | 500,000 min |
| Mechanical Life | 10,000,000 min |

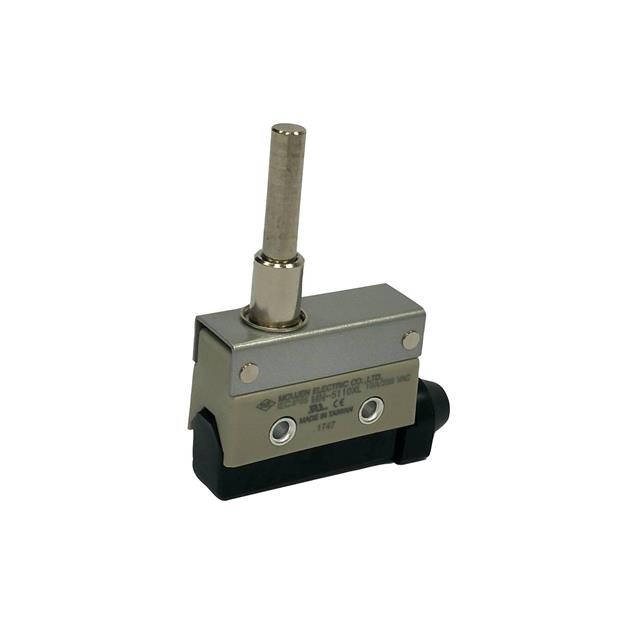

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MN-5110XL
Manufacturer: Moujen
Part Number: MN-5110XL
Description: Switch, SPDT, On-Mom, Round (Pin Plunger), Chassis Mount, Screw Terminal
Datasheet: MN-5110XL – Datasheet
$21.03
| Quantity | Price |
|---|---|
| 1 | $21.03 |
| 10 | $19.86 |
| 100+ | $18.65 |
