| Series | MEA |
| Part Status | Active |
| Circuit | SPDT (DB/DM) |
| Switch Function | On-Mom |
| Current Rating (Amps) | 6A (AC), 0.4A (DC) |
| Voltage Rating – AC | 250 V |
| Voltage Rating – DC | 125 V |
| Actuator Type | Cross Roller Plunger |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 – Dust Tight, Water Resistant |
| Operating Force | 500gf |
| Release Force | 150gf |
| Pretravel | 2mm |
| Differential Travel | 1mm |
| Overtravel | 4mm |
| Operating Temperature | -15°C ~ 70°C |
| Electrical Life | 500,000 min |
| Mechanical Life | 10,000,000 min |

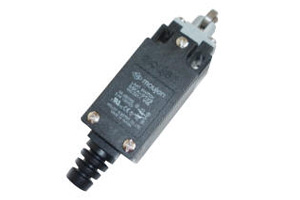

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MEA-9122-P
Manufacturer: Moujen
Part Number: MEA-9122-P
Description: Switch, SPDT (DB/DM), On-Mom, Cross Roller Plunger, Chassis Mount, Screw Terminal
Datasheet: MEA-9122-P – Datasheet
$31.67
| Quantity | Price |
|---|---|
| 1 | $31.67 |
| 10 | $30.00 |
| 50+ | $28.24 |
