| Series | MEA |
| Part Status | Active |
| Circuit | SPDT (DB/DM) |
| Switch Function | On-Mom |
| Current Rating (Amps) | 6A (AC), 0.4A (DC) |
| Voltage Rating – AC | 250 V |
| Voltage Rating – DC | 125 V |
| Actuator Type | Side rotary, adjustable roller |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 – Dust Tight, Water Resistant |
| Operating Force | 100gf |
| Release Force | 40gf |
| Pretravel | 20° |
| Differential Travel | 12° |
| Overtravel | 50° |
| Operating Temperature | -15°C ~ 70°C |
| Electrical Life | 500,000 min |
| Mechanical Life | 10,000,000 min |

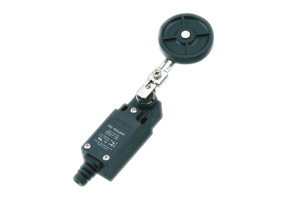

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MEA-9108-L
Manufacturer: Moujen
Part Number: MEA-9108-L
Description: Switch, SPDT (DB/DM), On-Mom, Side rotary, adjustable roller, Chassis Mount, Screw Terminal
Datasheet: MEA-9108-L – Datasheet
$33.78
| Quantity | Price |
|---|---|
| 1 | $33.78 |
| 10 | $32.09 |
| 50+ | $30.14 |
