| Series | ME |
| Part Status | Active |
| Circuit | SPDT (DB/DM) |
| Switch Function | On-Mom |
| Current Rating (Amps) | 5A (AC), 0.4A (DC) |
| Voltage Rating – AC | 250 V |
| Voltage Rating – DC | 115 V |
| Actuator Type | Side Rotary, Adjustable Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 – Dust Tight, Water Resistant |
| Features | Metal Lever, Metal Roller |
| Operating Force | 340gf |
| Release Force | 21gf |
| Pretravel | 20° |
| Differential Travel | 10° |
| Overtravel | 75° |
| Operating Temperature | -15°C ~ 70°C |
| Electrical Life | 300,000 min |
| Mechanical Life | 10,000,000 min |

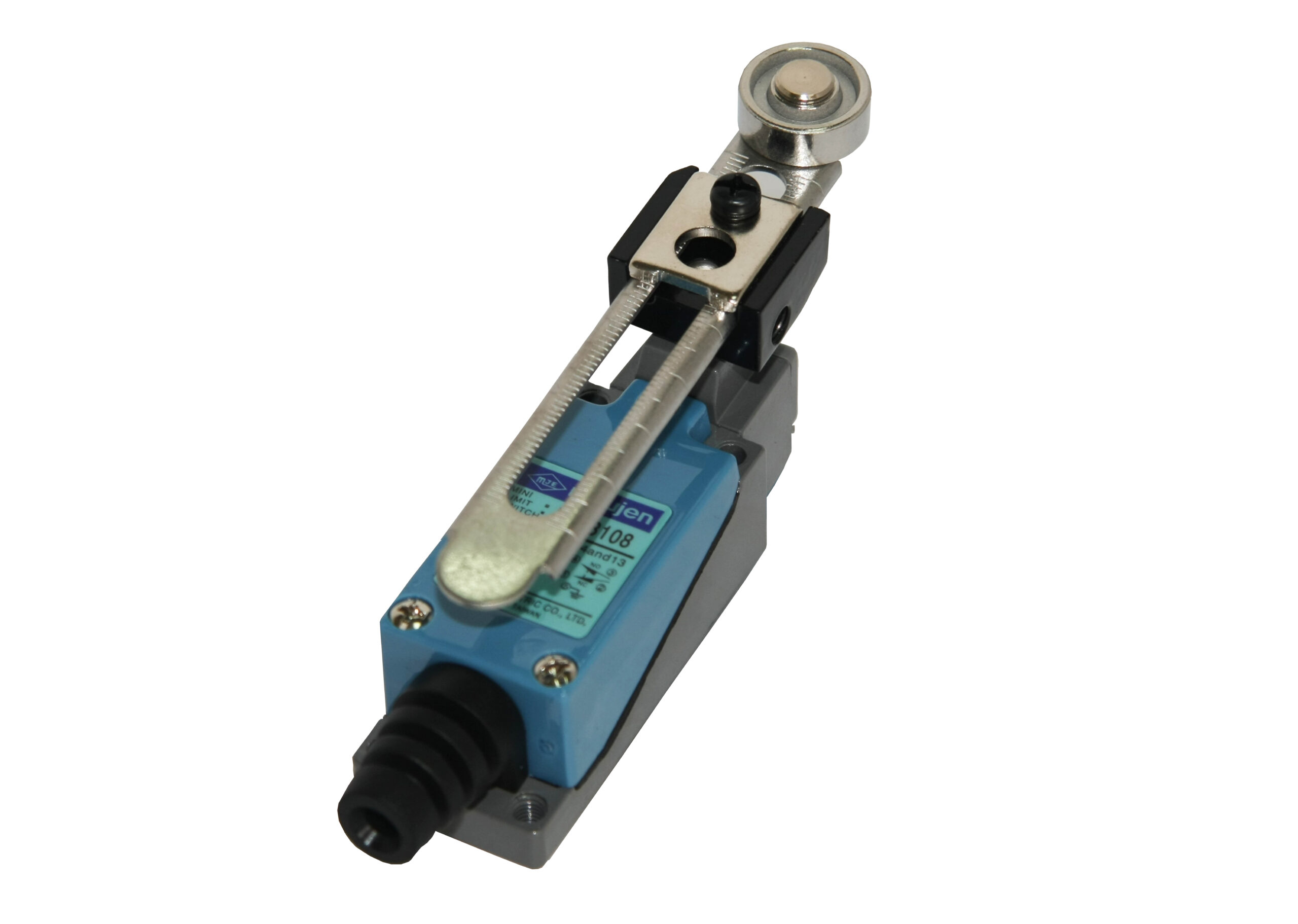

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ME-8108-M
Manufacturer: Moujen
Part Number: ME-8108-M
Description: Switch, SPDT (DB/DM), On-Mom, Side Rotary, Adjustable Roller, Chassis Mount, Screw Terminal
Datasheet: ME-8108-M – Datasheet
$40.00
| Quantity | Price |
|---|---|
| 1 | $40.00 |
| 10 | $37.97 |
| 50+ | $35.68 |
