| Connector Type | Plug, Female Sockets |
| Number of Positions | 6 |
| Shell Size – Insert | 10-Jun |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Black Zinc |
| Contact Finish – Mating | Gold |
| Color | Black |
| Ingress Protection | Environment Resistant |
| Features | Strain Relief |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600VAC, 850VDC |
| Operating Temperature | -55°C ~ 125°C |

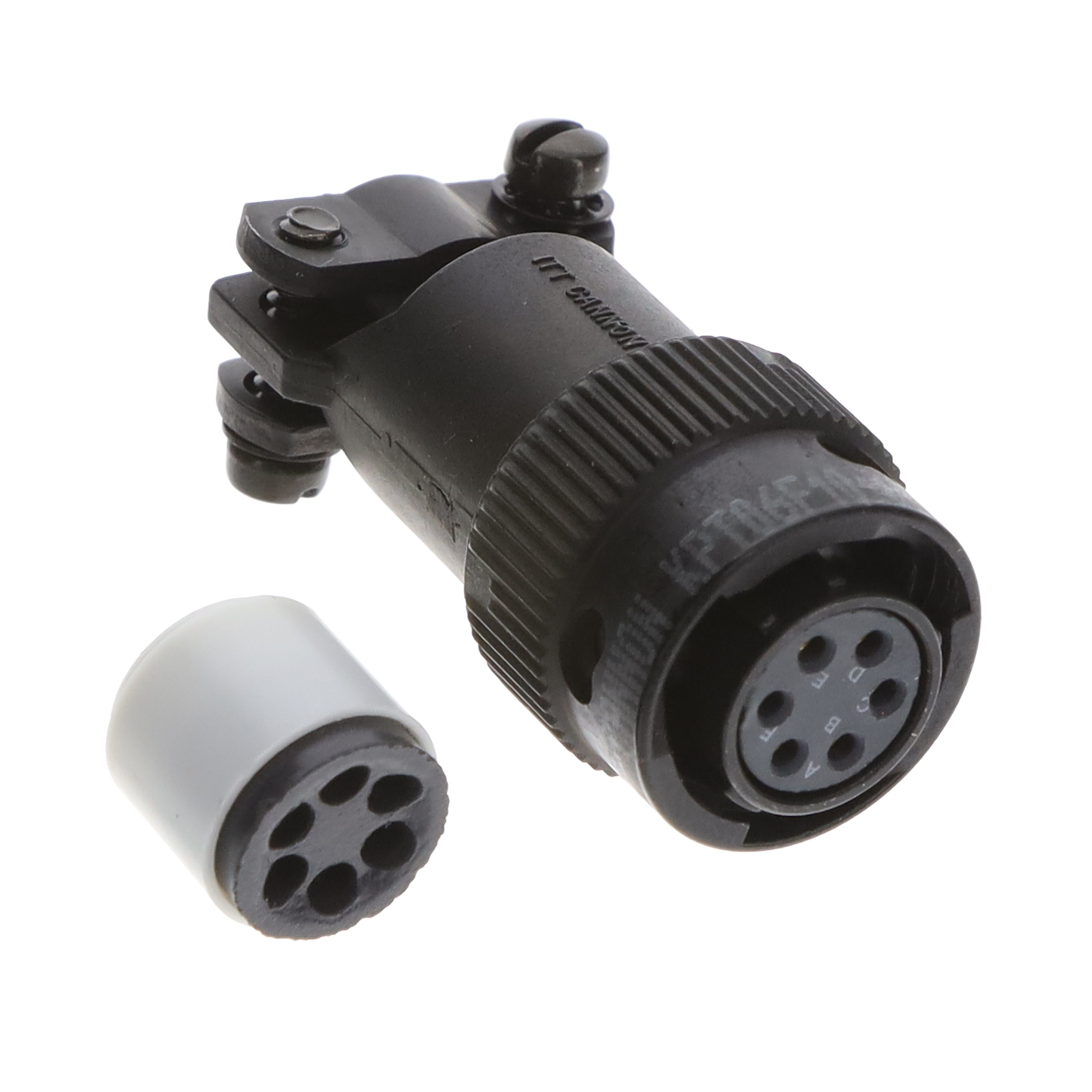

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
KPT06F10-6S(A206)
Manufacturer: CANNON
Part Number: KPT06F10-6S(A206)
Description: 6 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: KPT06F10-6S(A206) – Datasheet
