| Connector Type | Plug, Female Sockets |
| Number Of Positions | 5 |
| Shell Size – Insert | M12-5 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Contact Finish – Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 60VAC/DC |
| Operating Temperature | -55°C ~ 125°C |

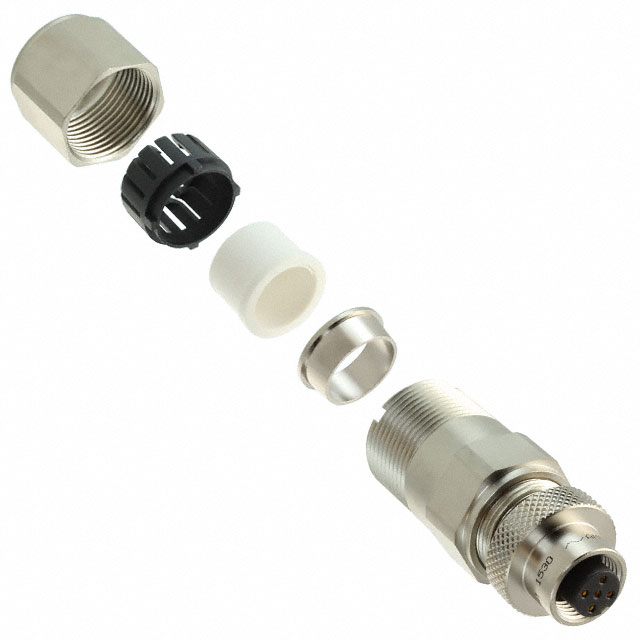

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
HDM12PF05A1STM
Manufacturer: Amphenol Industrial Operations
Part Number: HDM12PF05A1STM
Description: 5 Position Circular Connector Plug, Female Sockets Solder Cup
