| Connector Type | Receptacle, Male Pins |
| Number Of Positions | 48 |
| Shell Size – Insert | 36-10 |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Crimp |
| Fastening Type | Reverse Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |
| Voltage Rating | 500VAC, 700VDC |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

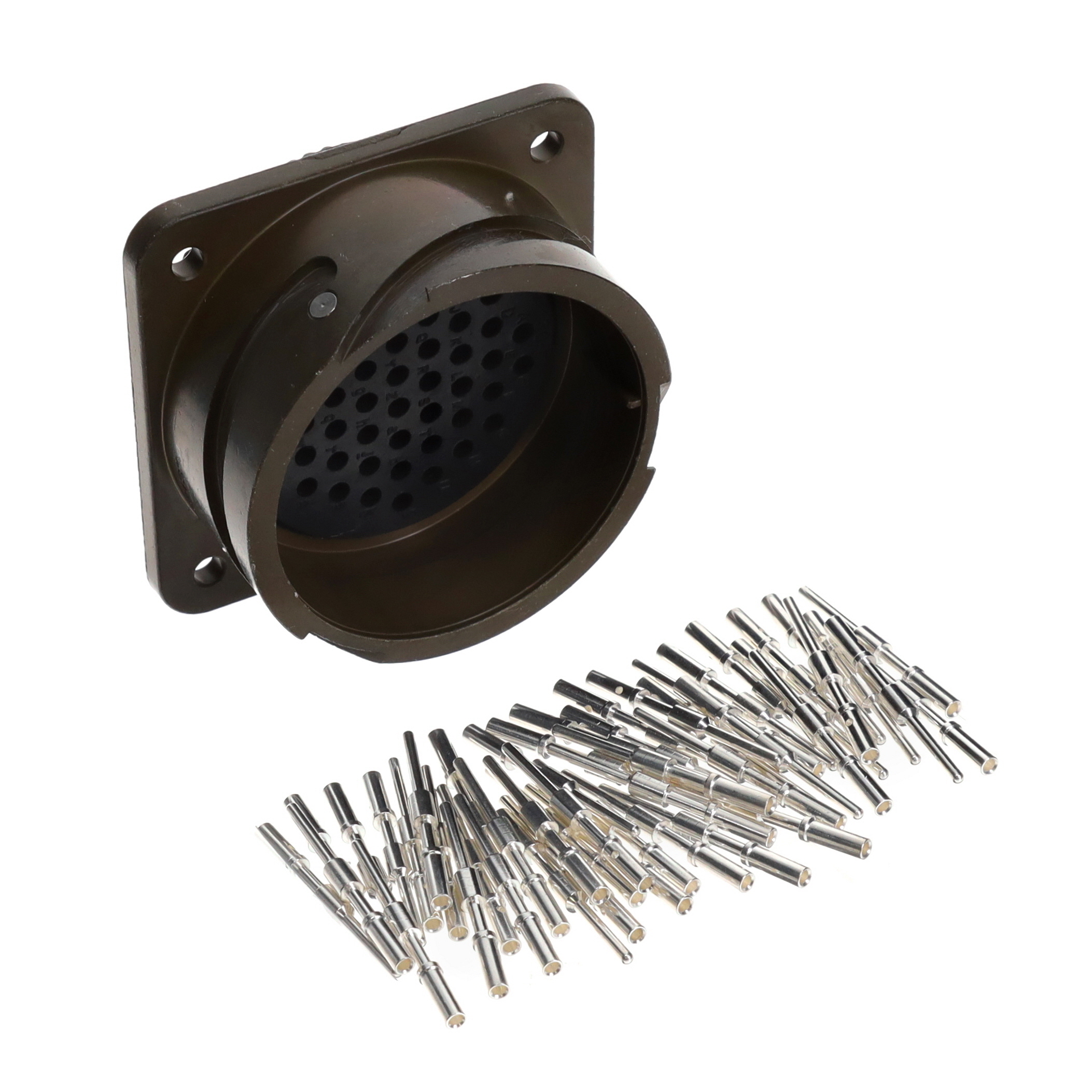

GTC030-36-10P
Manufacturer: Amphenol Industrial Operations
Part Number: GTC030-36-10P
Description: 48 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet: GTC030-36-10P – Datasheet
$137.97
| Quantity | Price |
|---|---|
| 5 | $137.97 |
| 10 | $134.03 |
| 25 | $128.52 |
| 50 | $100.11 |
| 100 | $81.78 |
| 250+ | $80.21 |
