| Type | Feed Through |
| Number of Positions | 4 |
| Number of Levels | 2 |
| Terminal – Width | 6.0mm |
| Termination Style | Screw |
| Current – IEC | 32 A |
| Voltage – IEC | 500V |
| Current – UL | 35 A |
| Voltage – UL | 600V |
| Wire Gauge or Range – AWG | 10-22 AWG |
| Wire Gauge or Range – mm² | 0.2-4mm² |
| Features | Diode |
| Color | Gray |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
CDL4U(E)D3
Manufacturer: Altech Corporation
Part Number: CDL4U(E)D3
Description: DIN TERM BLK, SCREW, DIODE
Datasheet: CDL4U(E)D3 – Datasheet

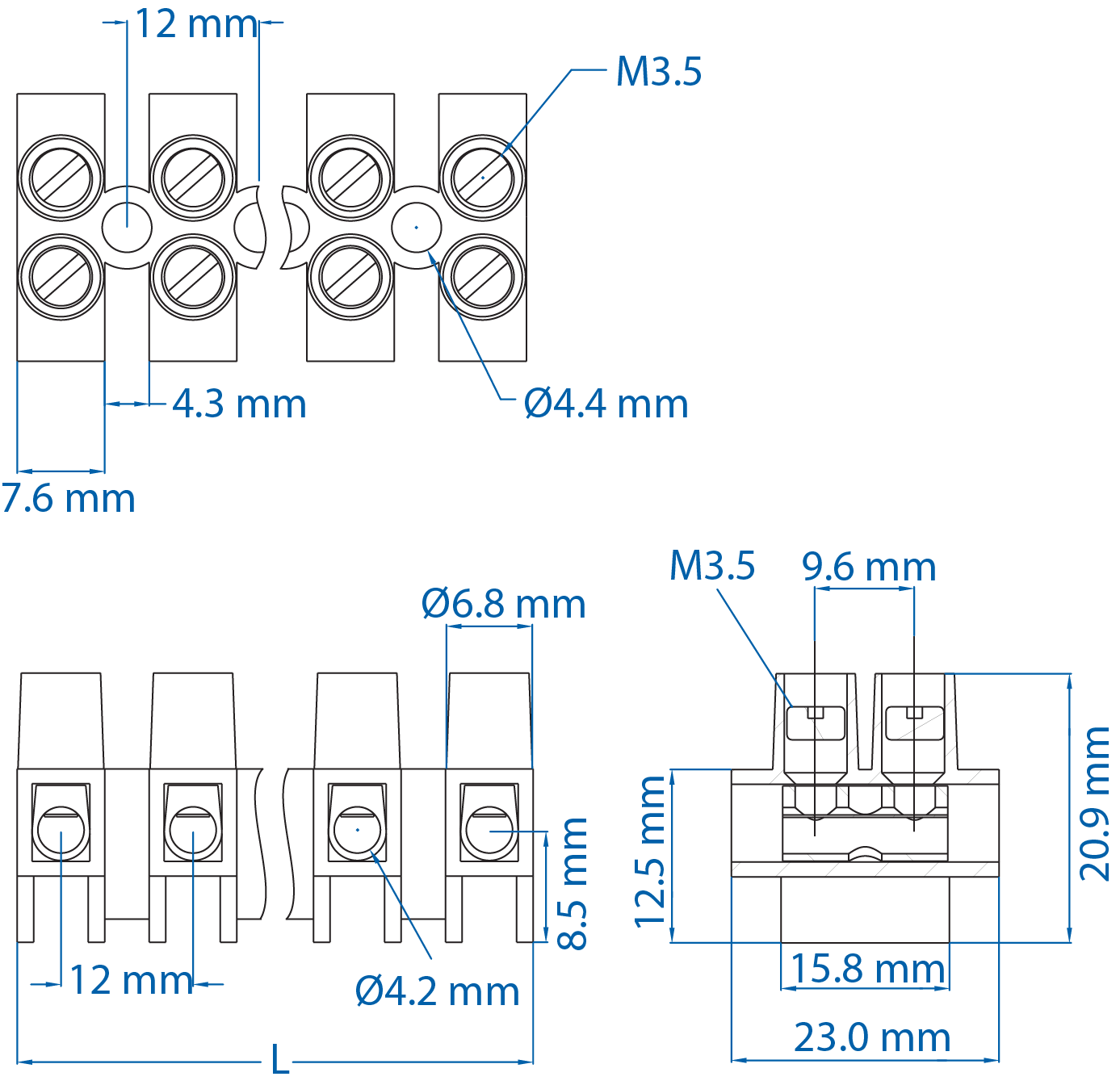

Drawing: View Drawing
$3.04
