| Type | Cable Gland |
| Outside Cable Diameter (Min) | 0.236" (6.00mm) |
| Outside Cable Diameter (Max) | 0.472" (12.00mm) |
| Thread Size | M20x1.5 |
| Thread Length | 0.354" (9.00mm) |
| Material | Polyamide (PA), Nylon |
| Includes | Panel Nut, Sealing Nut |
| Color | Black |
| Ingress Protection | IP68 – Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 100°C |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

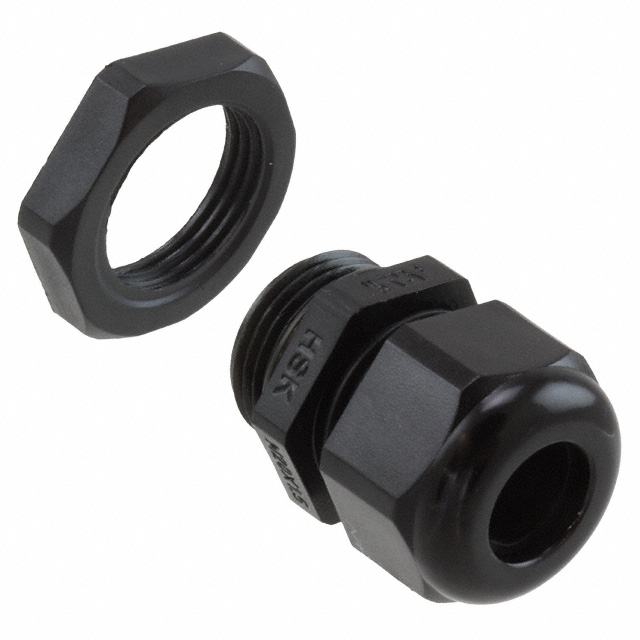

AIO-CSM20
Manufacturer: Amphenol Industrial Operations
Part Number: AIO-CSM20
Description: Cable Gland Polyamide (PA), Nylon M20x1.5 Black
Datasheet: AIO-CSM20 – Datasheet
$1.56
| Quantity | Price |
|---|---|
| 5 | $1.56 |
| 10 | $1.51 |
| 25 | $1.45 |
| 50 | $1.41 |
| 100 | $1.39 |
| 250+ | $1.36 |
