| Type | Cable Gland |
| Outside Cable Diameter (Min) | 0.118" (3.00mm) |
| Outside Cable Diameter (Max) | 0.256" (6.50mm) |
| Thread Size | M12x1.5 |
| Thread Length | 0.315" (8.00mm) |
| Material | Polyamide (PA), Nylon |
| Includes | Panel Nut, Sealing Nut |
| Color | Black |
| Ingress Protection | IP68 – Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 100°C |

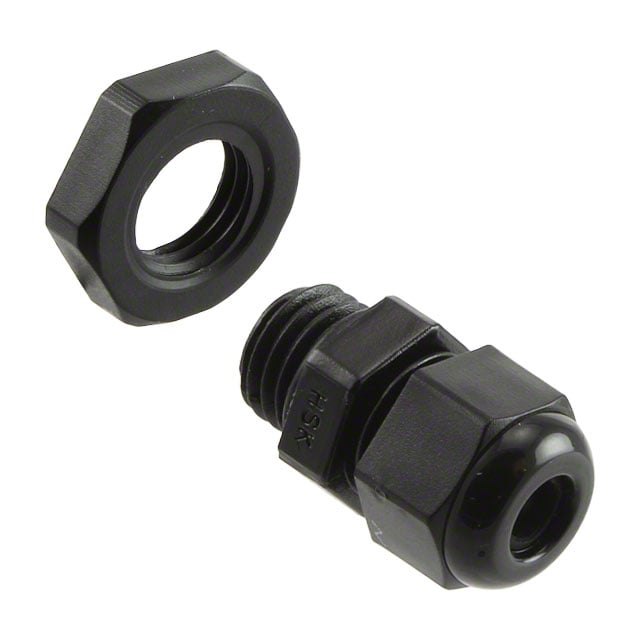

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AIO-CSM12
Manufacturer: Amphenol Industrial Operations
Part Number: AIO-CSM12
Description: Cable Gland Polyamide (PA), Nylon M12x1.5 Black
Datasheet: AIO-CSM12 – Datasheet
$1.24
| Quantity | Price |
|---|---|
| 5 | $1.24 |
| 10 | $1.20 |
| 25 | $1.15 |
| 50 | $1.12 |
| 100 | $1.10 |
| 250+ | $1.08 |
