| Connector Type | Plug, Male Pins |
| Number Of Positions | 19 |
| Shell Size – Insert | 22-14 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Black Zinc Alloy |
| Contact Finish – Mating | Silver |
| Color | Black |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |

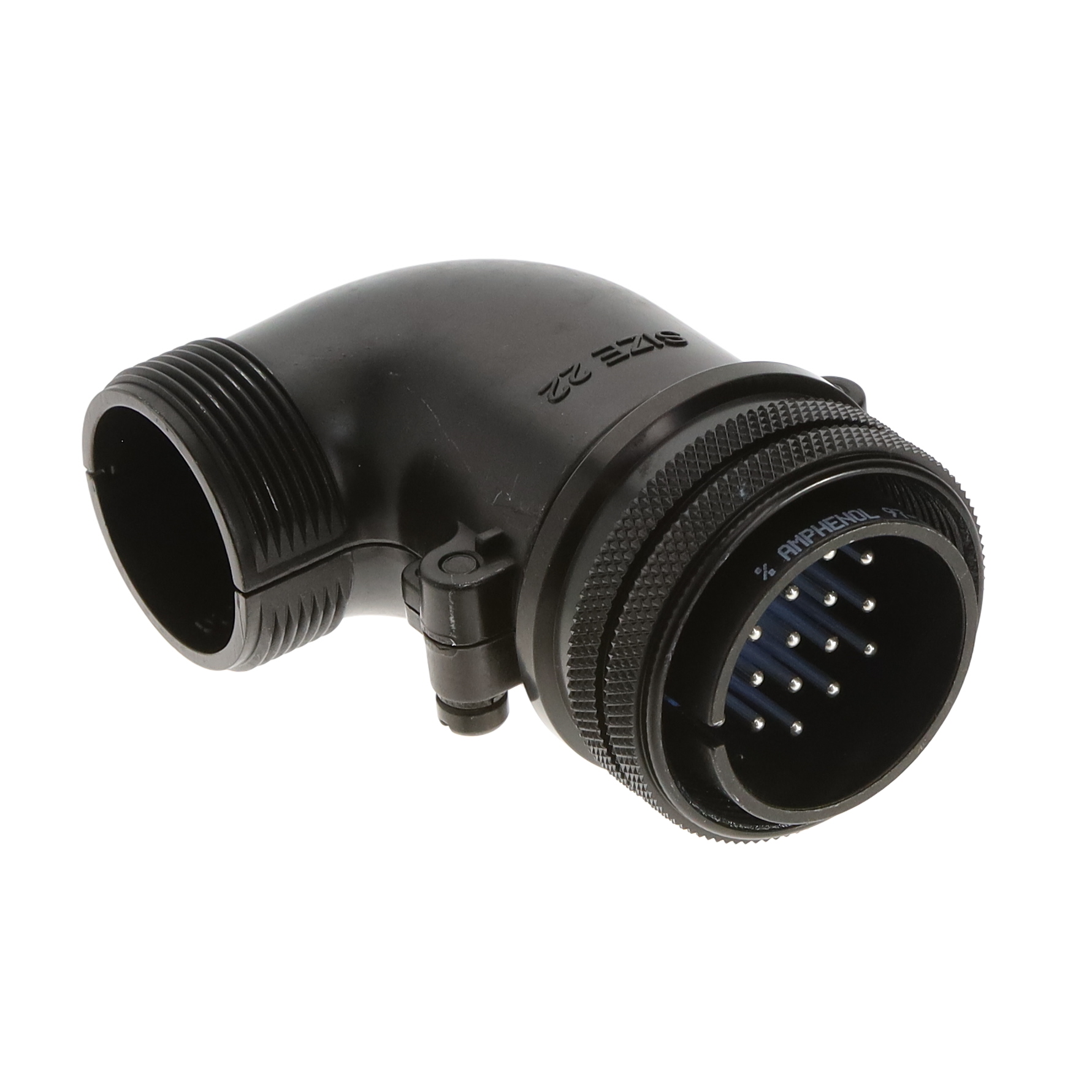

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3108B-22-14P(946)
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3108B-22-14P(946)
Description: 19 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: 97-3108B-22-14P(946) – Datasheet
$48.69
| Quantity | Price |
|---|---|
| 5 | $48.69 |
| 10 | $47.30 |
| 25 | $45.36 |
| 50 | $44.15 |
| 100 | $40.76 |
| 250+ | $39.97 |
