| Connector Type | Plug, Female Sockets |
| Number Of Positions | 3 |
| Shell Size – Insert | 28-Jun |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 80A |

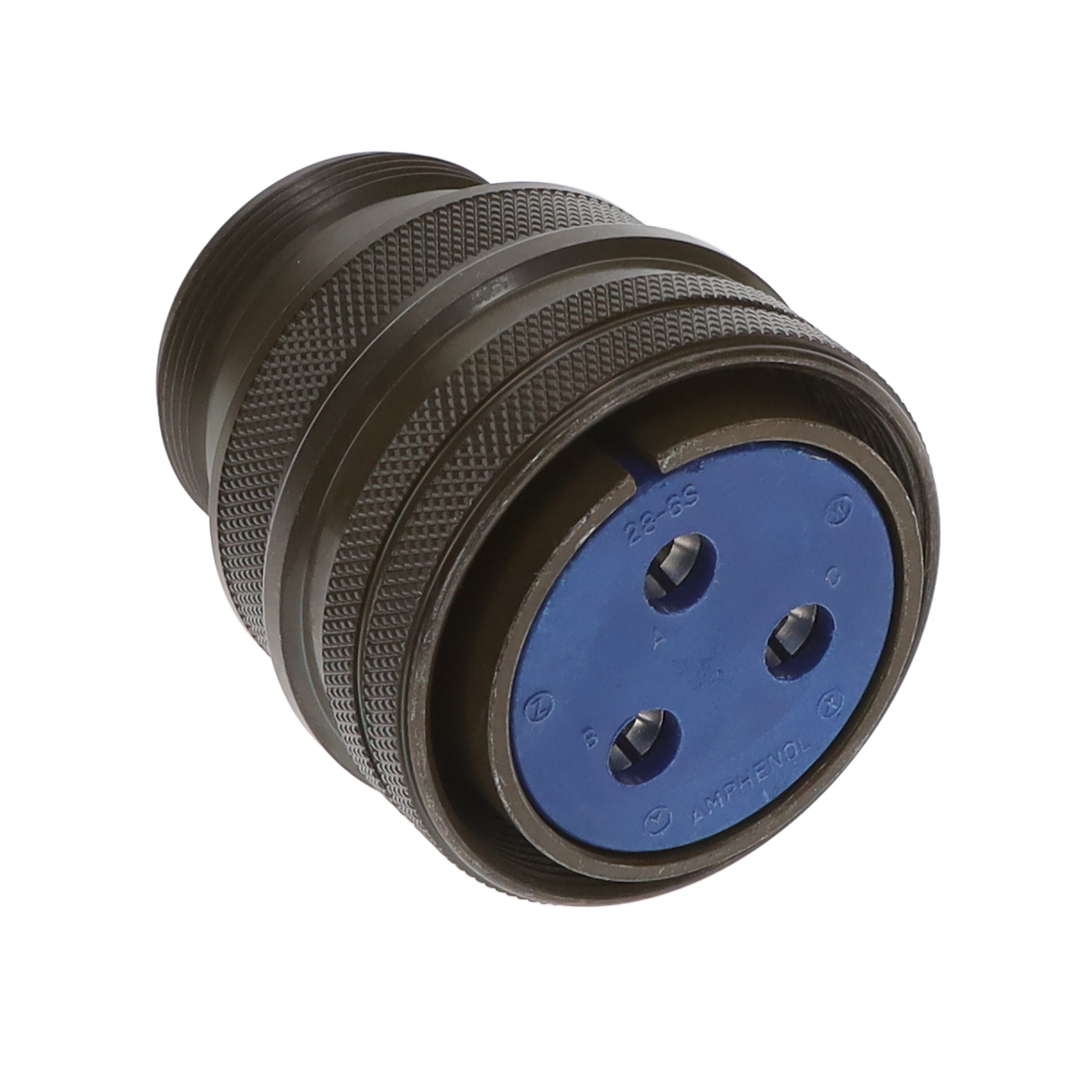

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-28-6S
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-28-6S
Description: 3 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: 97-3106A-28-6S – Datasheet
$65.24
| Quantity | Price |
|---|---|
| 5 | $65.24 |
| 10 | $63.37 |
| 25 | $60.77 |
| 50 | $59.15 |
| 100 | $54.62 |
| 250+ | $53.57 |
