| Connector Type | Plug, Female Sockets |
| Number Of Positions | 8 |
| Shell Size – Insert | 24-Jun |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 23A |

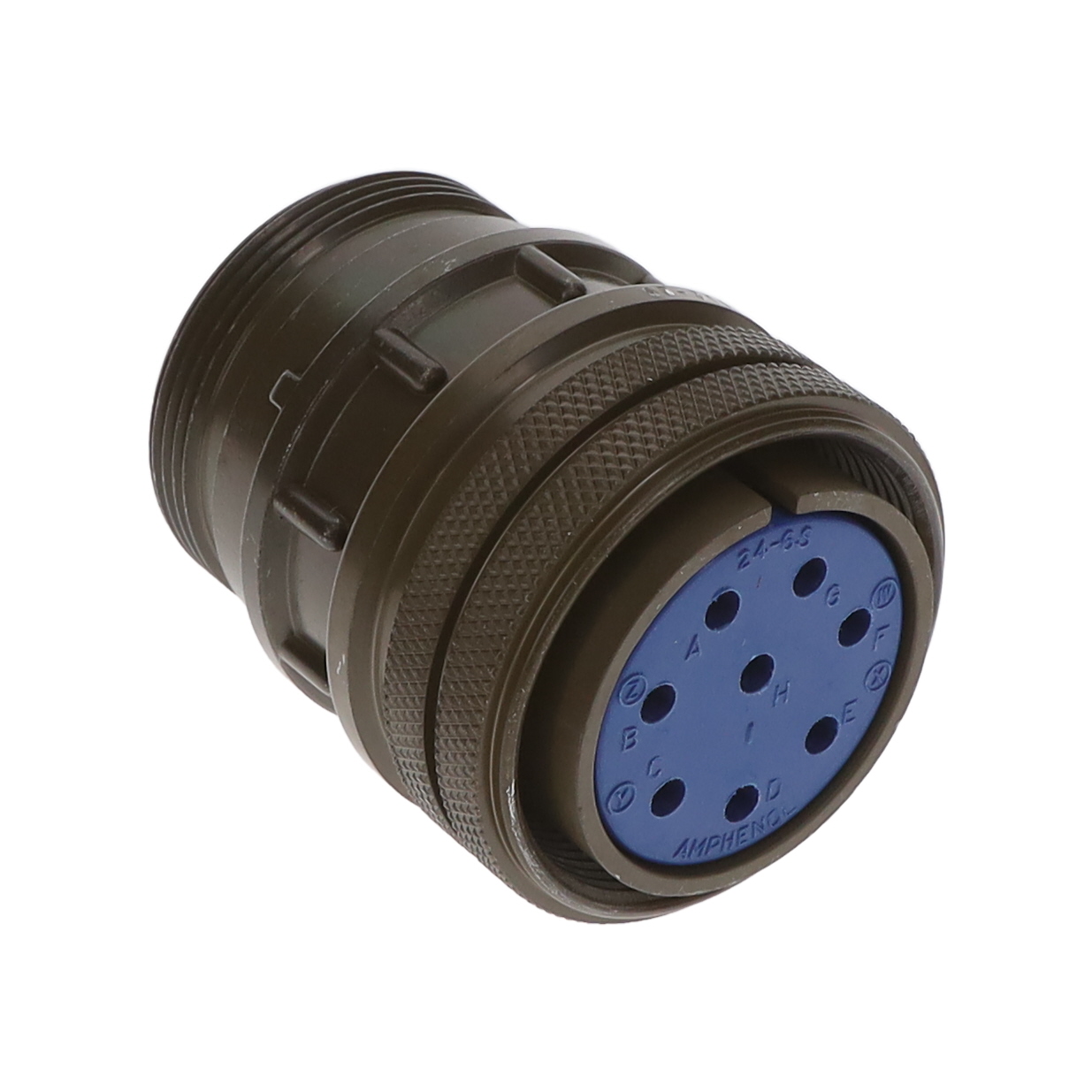

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-24-6S
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-24-6S
Description: 8 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: 97-3106A-24-6S – Datasheet
$196.16
| Quantity | Price |
|---|---|
| 5 | $196.16 |
| 10 | $190.56 |
| 25 | $182.73 |
| 50 | $177.85 |
| 100 | $164.16 |
| 250+ | $161.00 |
