| Connector Type | Plug, Male Pins |
| Number Of Positions | 17 |
| Shell Size – Insert | 20-29 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Clear Cadmium |
| Contact Finish – Mating | Silver |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |
| Voltage Rating | 500VAC, 700VDC |

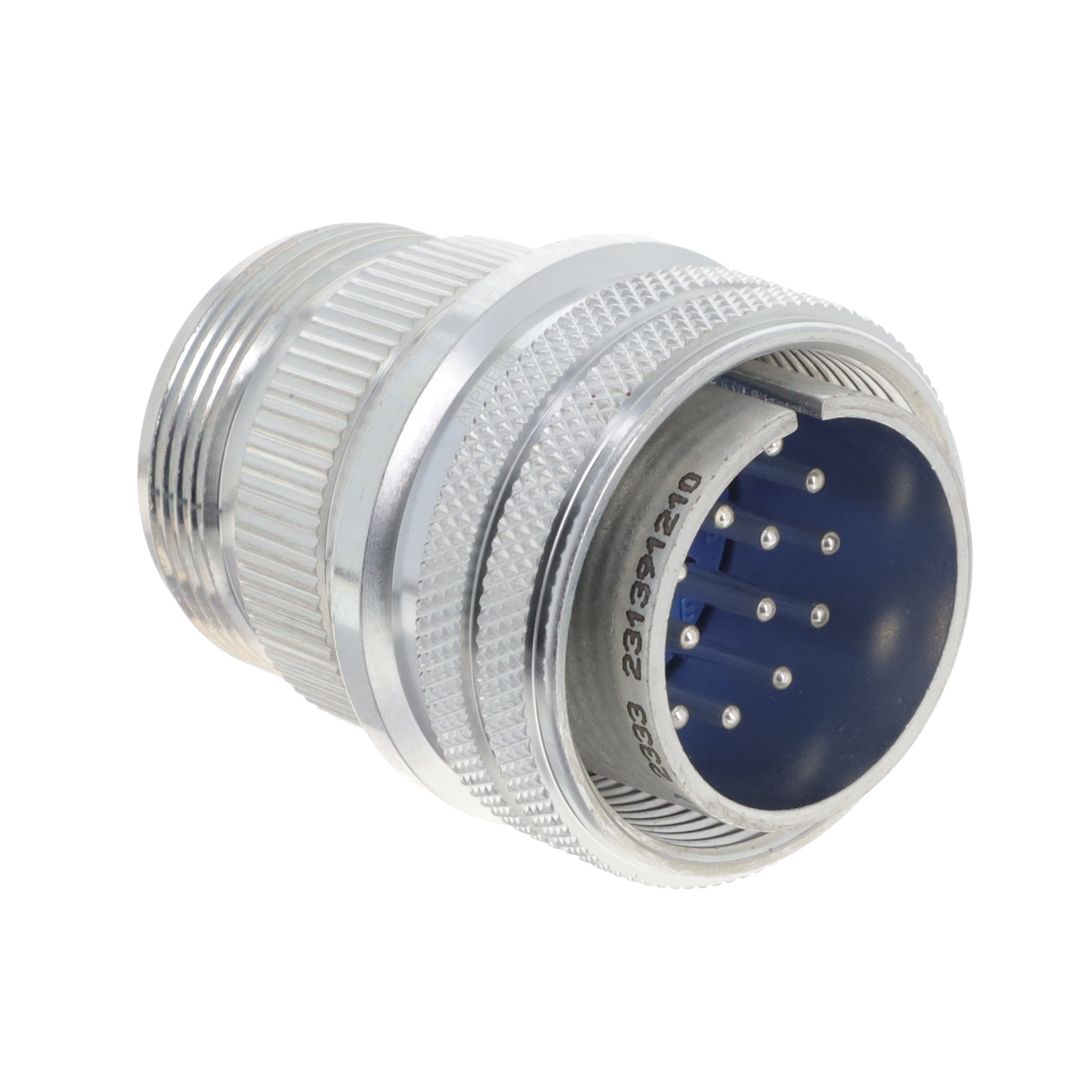

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-20-29P
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-20-29P
Description: 17 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: 97-3106A-20-29P – Datasheet
$34.79
| Quantity | Price |
|---|---|
| 5 | $34.79 |
| 10 | $33.80 |
| 25 | $32.41 |
| 50 | $31.55 |
| 100 | $29.19 |
| 250+ | $28.63 |
