| Connector Type | Plug, Male Pins |
| Number Of Positions | 4 |
| Shell Size – Insert | 20-24 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A, 46A |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

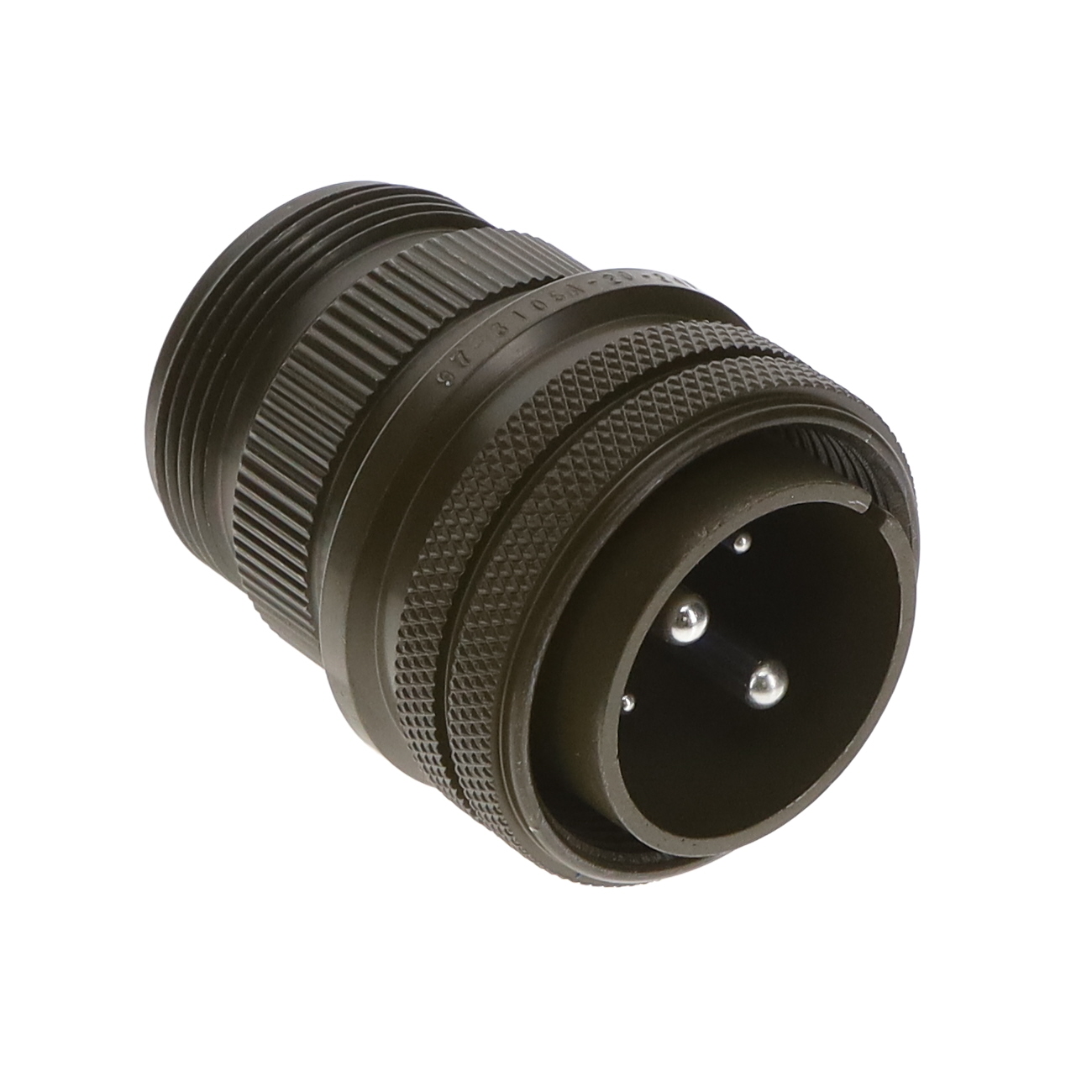

97-3106A-20-24P
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-20-24P
Description: 4 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: 97-3106A-20-24P – Datasheet
$123.46
| Quantity | Price |
|---|---|
| 5 | $123.46 |
| 10 | $119.93 |
| 25 | $115.00 |
| 50 | $111.93 |
| 100 | $103.31 |
| 250+ | $101.32 |
