| Connector Type | Plug, Male Pins |
| Number Of Positions | 7 |
| Shell Size – Insert | 20-15 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Electroless Nickel |
| Contact Finish – Mating | Silver |
| Color | Silver |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 23A |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

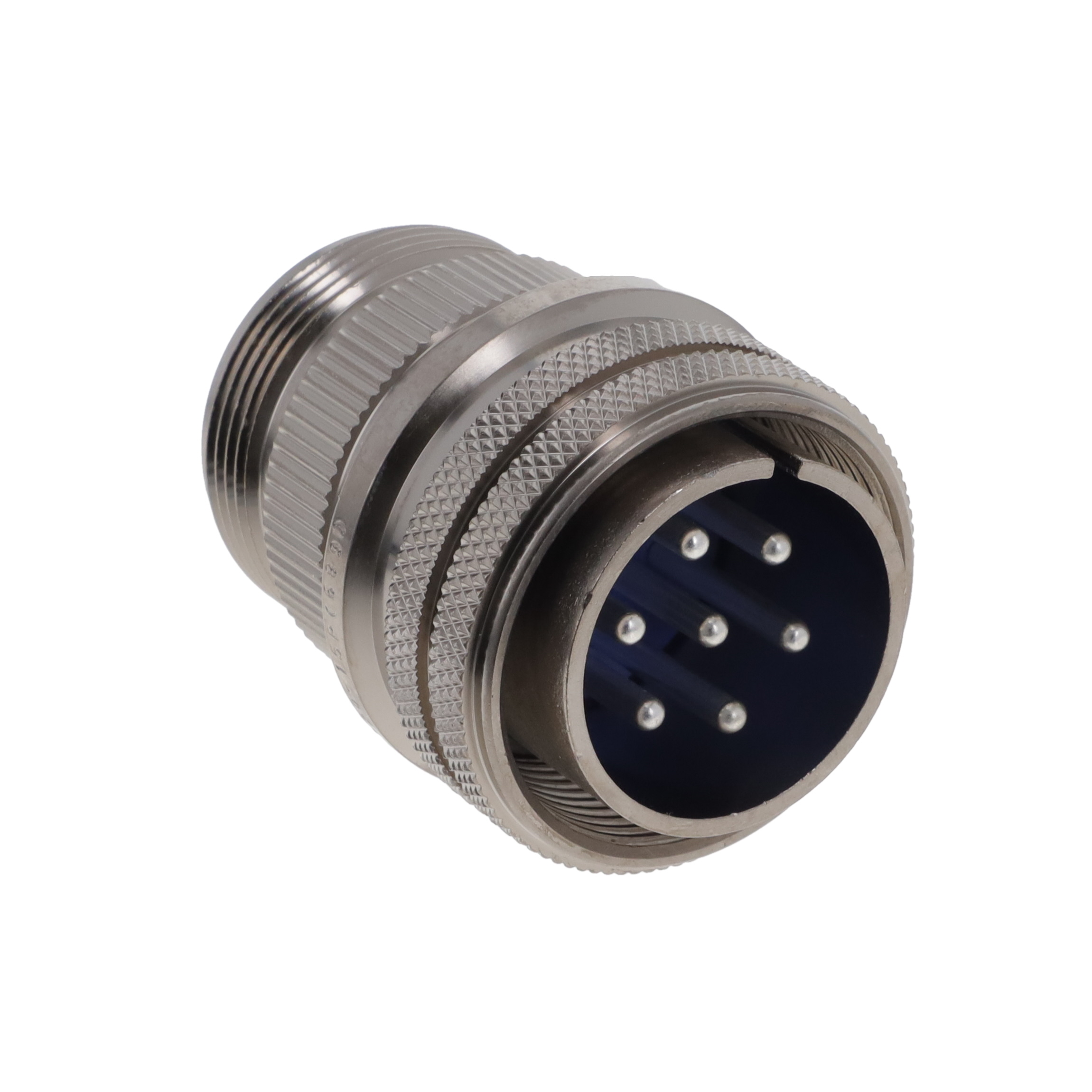

97-3106A-20-15P(689)
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-20-15P(689)
Description: 7 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: 97-3106A-20-15P(689) – Datasheet
$35.85
| Quantity | Price |
|---|---|
| 5 | $35.85 |
| 10 | $34.83 |
| 25 | $33.40 |
| 50 | $32.51 |
| 100 | $30.51 |
| 250+ | $29.92 |
