| Connector Type | Plug, Male Pins |
| Number Of Positions | 3 |
| Shell Size – Insert | 18-May |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A, 23A |

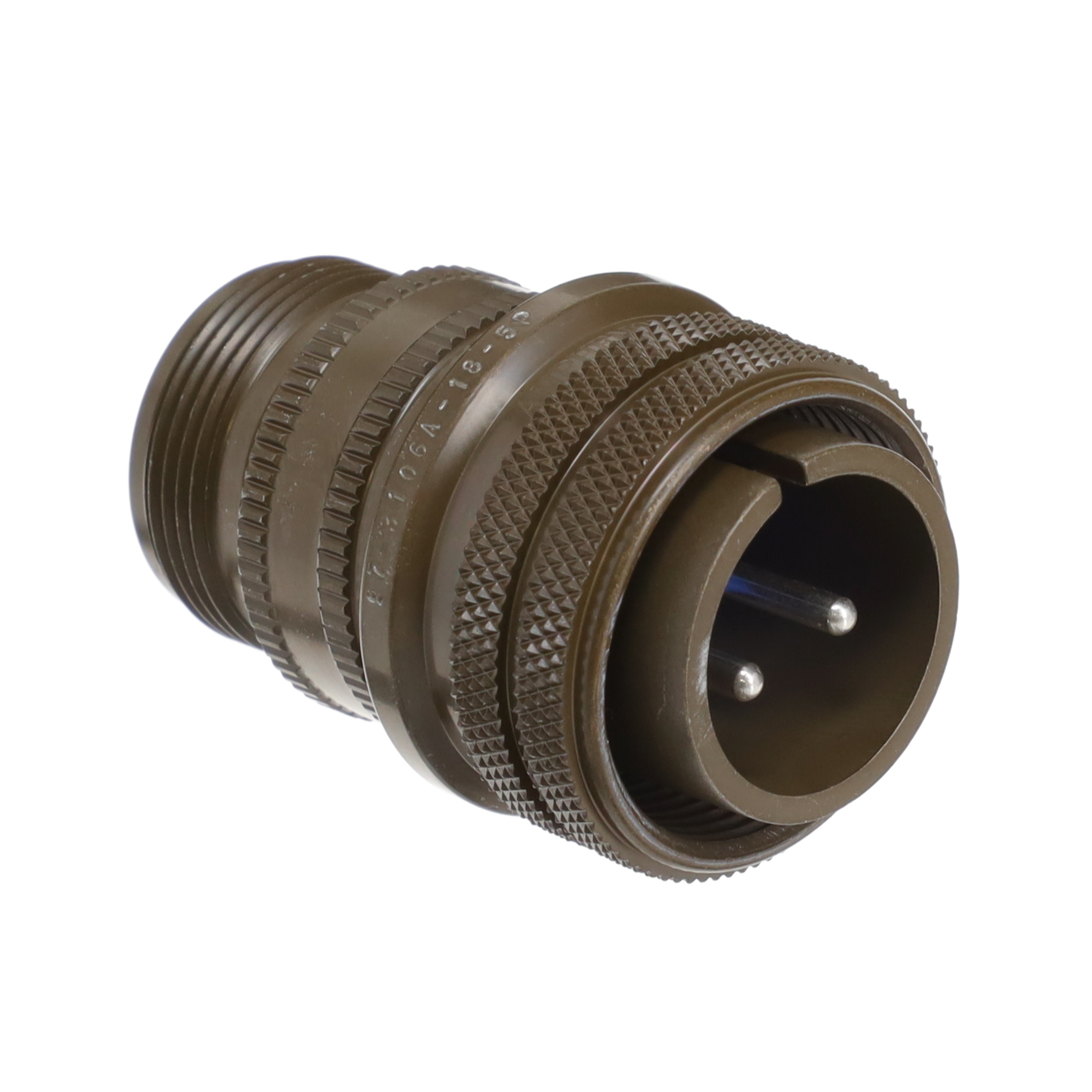

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-18-5P
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-18-5P
Description: 3 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet: 97-3106A-18-5P – Datasheet
$52.09
| Quantity | Price |
|---|---|
| 5 | $52.09 |
| 10 | $50.60 |
| 25 | $48.52 |
| 50 | $47.23 |
| 100 | $43.60 |
| 250+ | $42.76 |
