| Connector Type | Plug, Female Sockets |
| Number Of Positions | 2 |
| Shell Size – Insert | 14S-9 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |

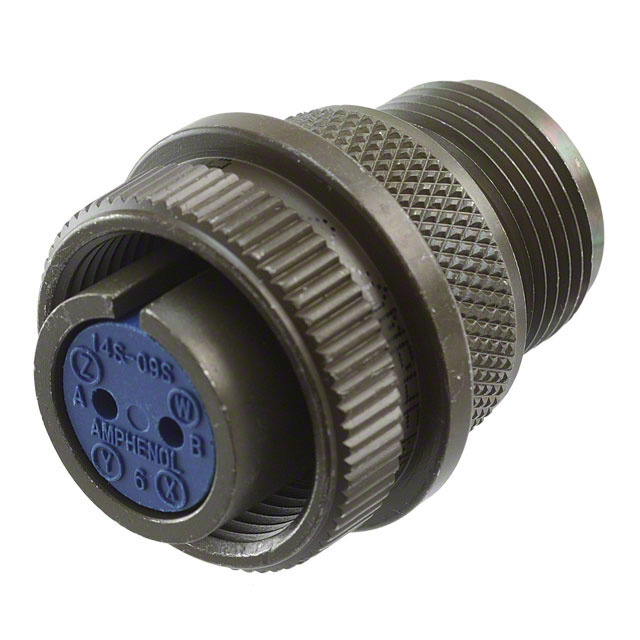

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-14S-9S
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-14S-9S
Description: 2 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: 97-3106A-14S-9S – Datasheet
$19.43
| Quantity | Price |
|---|---|
| 5 | $19.43 |
| 10 | $18.87 |
| 25 | $18.10 |
| 50 | $17.61 |
| 100 | $16.23 |
| 250+ | $15.92 |
