| Connector Type | Plug, Female Sockets |
| Number Of Positions | 3 |
| Shell Size – Insert | 14S-7 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |

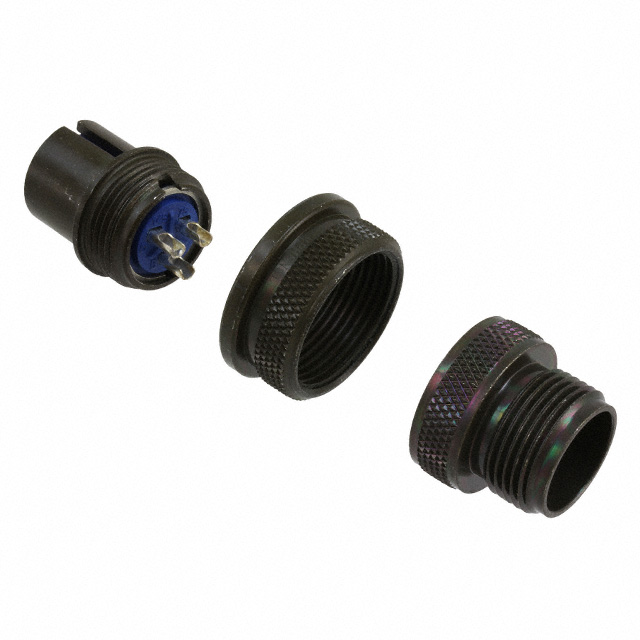

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-14S-7S
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-14S-7S
Description: 3 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: 97-3106A-14S-7S – Datasheet
$20.74
| Quantity | Price |
|---|---|
| 5 | $20.74 |
| 10 | $20.14 |
| 25 | $19.32 |
| 50 | $18.80 |
| 100 | $17.39 |
| 250+ | $17.05 |
