| Connector Type | Plug, Female Sockets |
| Number Of Positions | 6 |
| Shell Size – Insert | 14S-6 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Clear Cadmium |
| Contact Finish – Mating | Silver |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |
| Voltage Rating | 200VAC, 250VDC |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3106A-14S-6S(639)
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3106A-14S-6S(639)

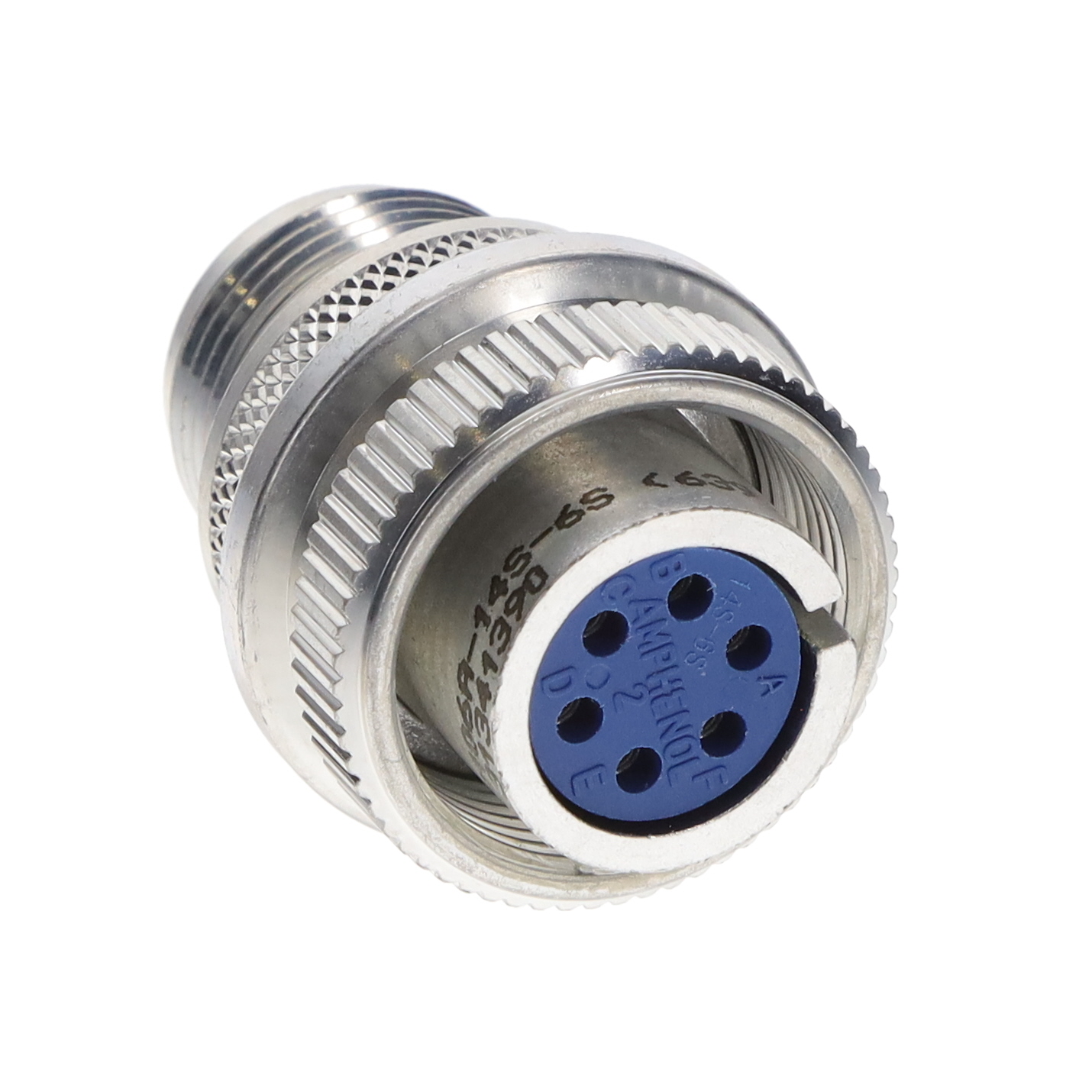

Description: 6 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet: 97-3106A-14S-6S(639) – Datasheet
$19.06
| Quantity | Price |
|---|---|
| 5 | $19.06 |
| 10 | $18.51 |
| 25 | $17.75 |
| 50 | $17.28 |
| 100 | $15.91 |
| 250+ | $15.60 |
