| Connector Type | Receptacle, Female Sockets |
| Number Of Positions | 30 |
| Shell Size – Insert | 32-8 |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

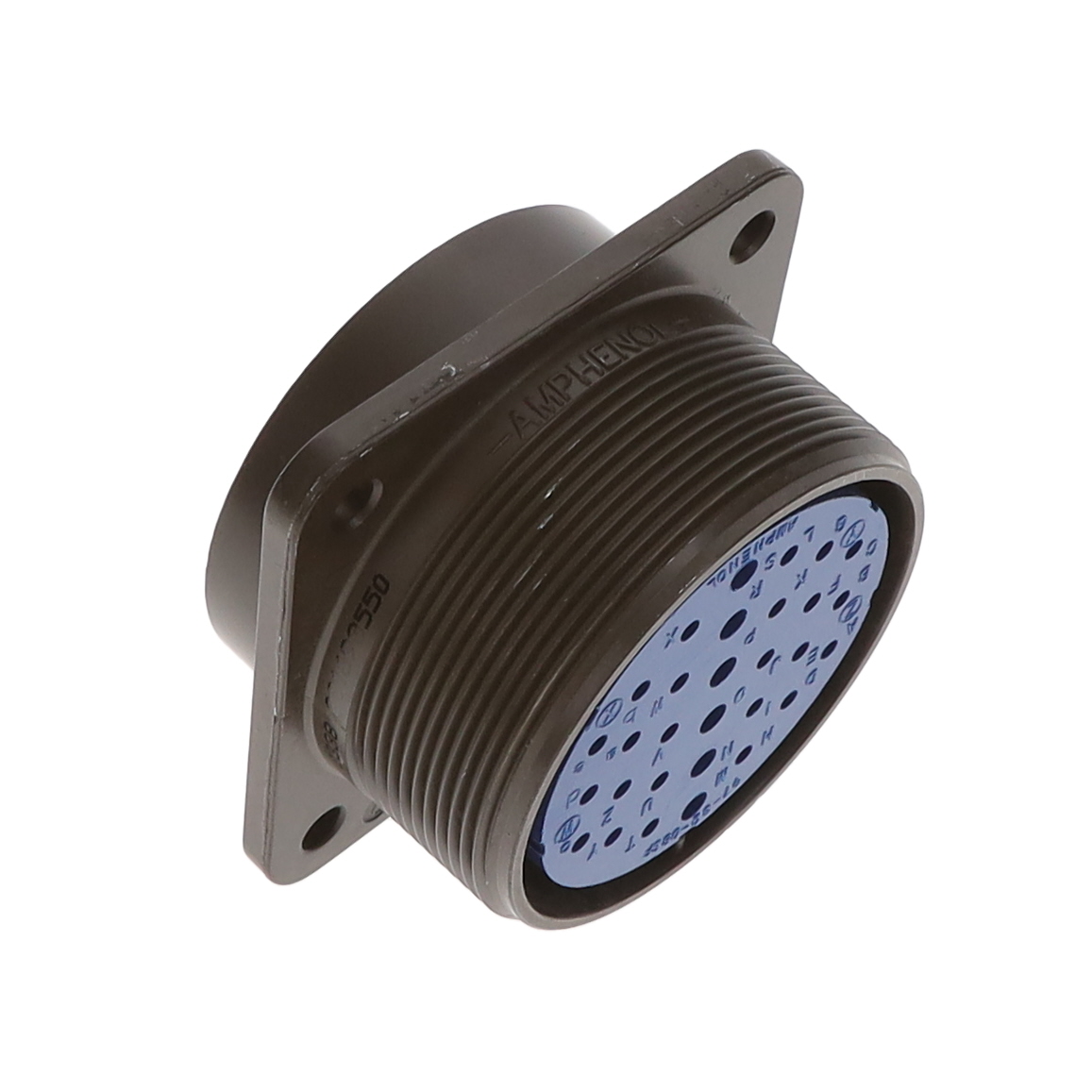

97-3102A-32-8S
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3102A-32-8S
Description: 30 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet: 97-3102A-32-8S – Datasheet
$53.18
| Quantity | Price |
|---|---|
| 5 | $53.18 |
| 10 | $51.66 |
| 25 | $49.53 |
| 50 | $48.21 |
| 100 | $44.54 |
| 250+ | $43.68 |
