| Connector Type | Receptacle, Male Pins |
| Number Of Positions | 11 |
| Shell Size – Insert | 24-20 |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |

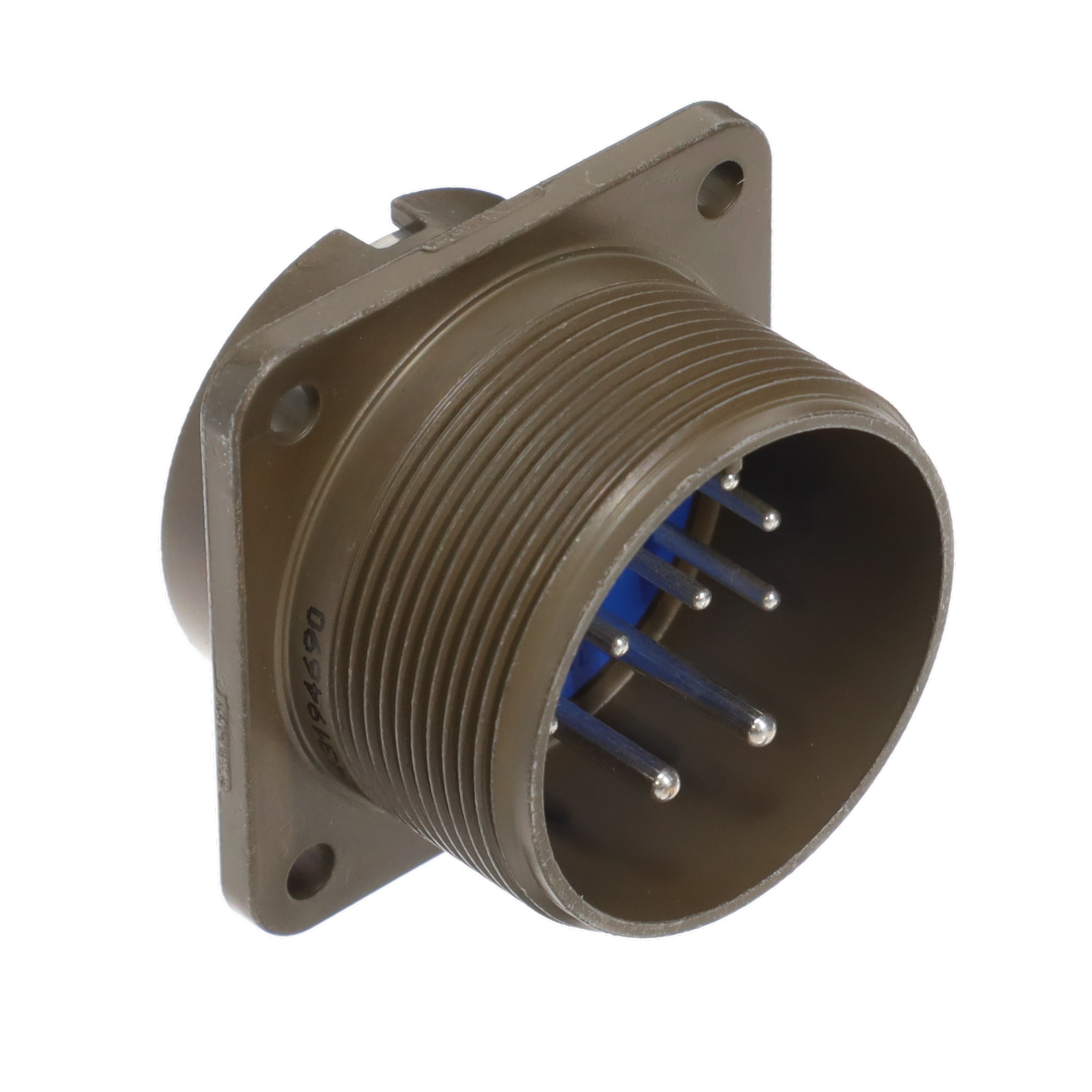

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3102A-24-20P
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3102A-24-20P
Description: 11 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet: 97-3102A-24-20P – Datasheet
$35.96
| Quantity | Price |
|---|---|
| 5 | $35.96 |
| 10 | $34.93 |
| 25 | $33.49 |
| 50 | $32.60 |
| 100 | $30.19 |
| 250+ | $29.61 |
