| Connector Type | Receptacle, Male Pins |
| Number Of Positions | 4 |
| Shell Size – Insert | 20-Apr |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 23A |
| Voltage Rating | 900VAC, 1.25kVDC |

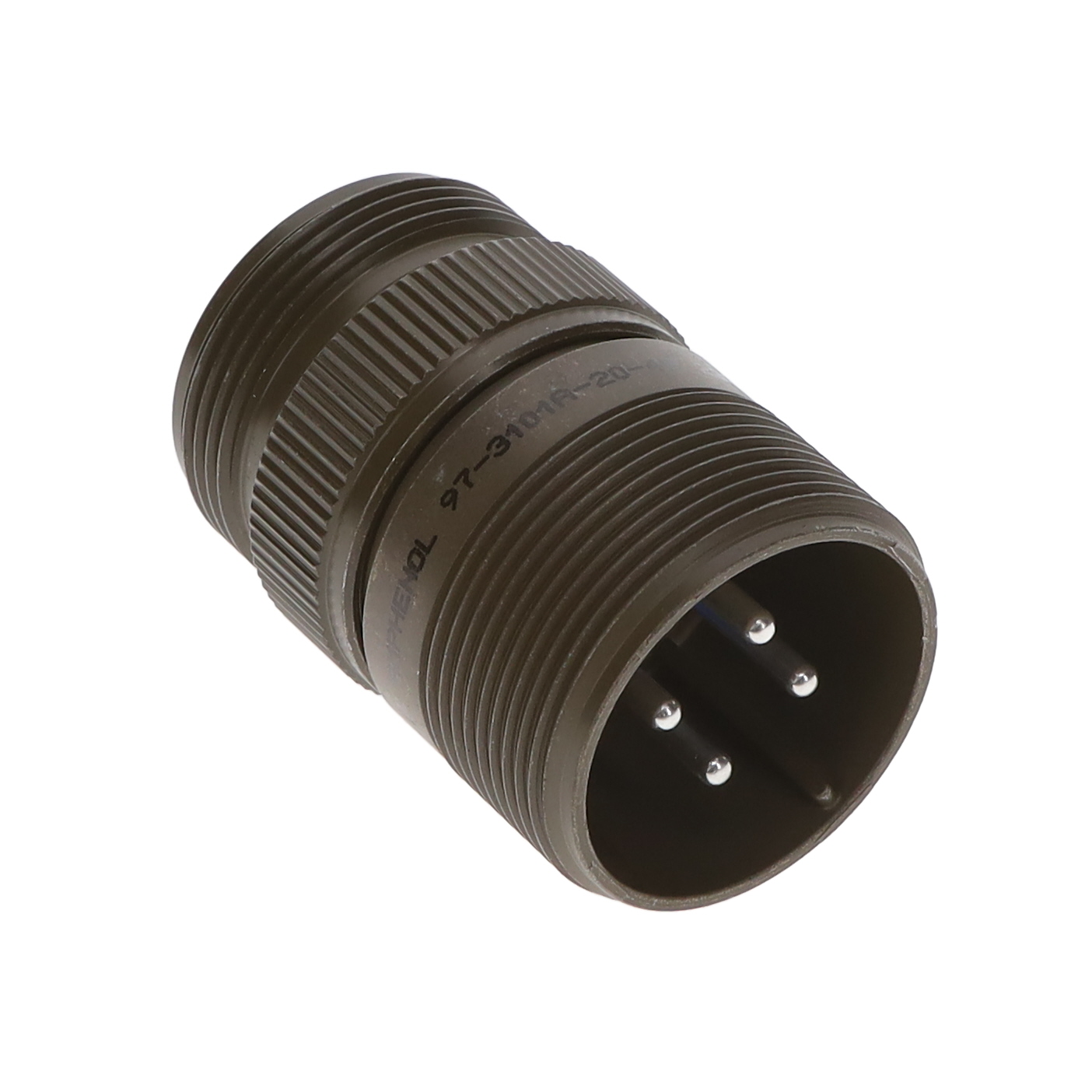

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3101A-20-4P
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3101A-20-4P
Description: 4 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet: 97-3101A-20-4P – Datasheet
$28.03
| Quantity | Price |
|---|---|
| 5 | $28.03 |
| 10 | $27.23 |
| 25 | $26.11 |
| 50 | $25.41 |
| 100 | $23.44 |
| 250+ | $22.99 |
