| Connector Type | Receptacle, Male Pins |
| Number Of Positions | 7 |
| Shell Size – Insert | 20-15 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 23A |
| Voltage Rating | 500VAC, 700VDC |

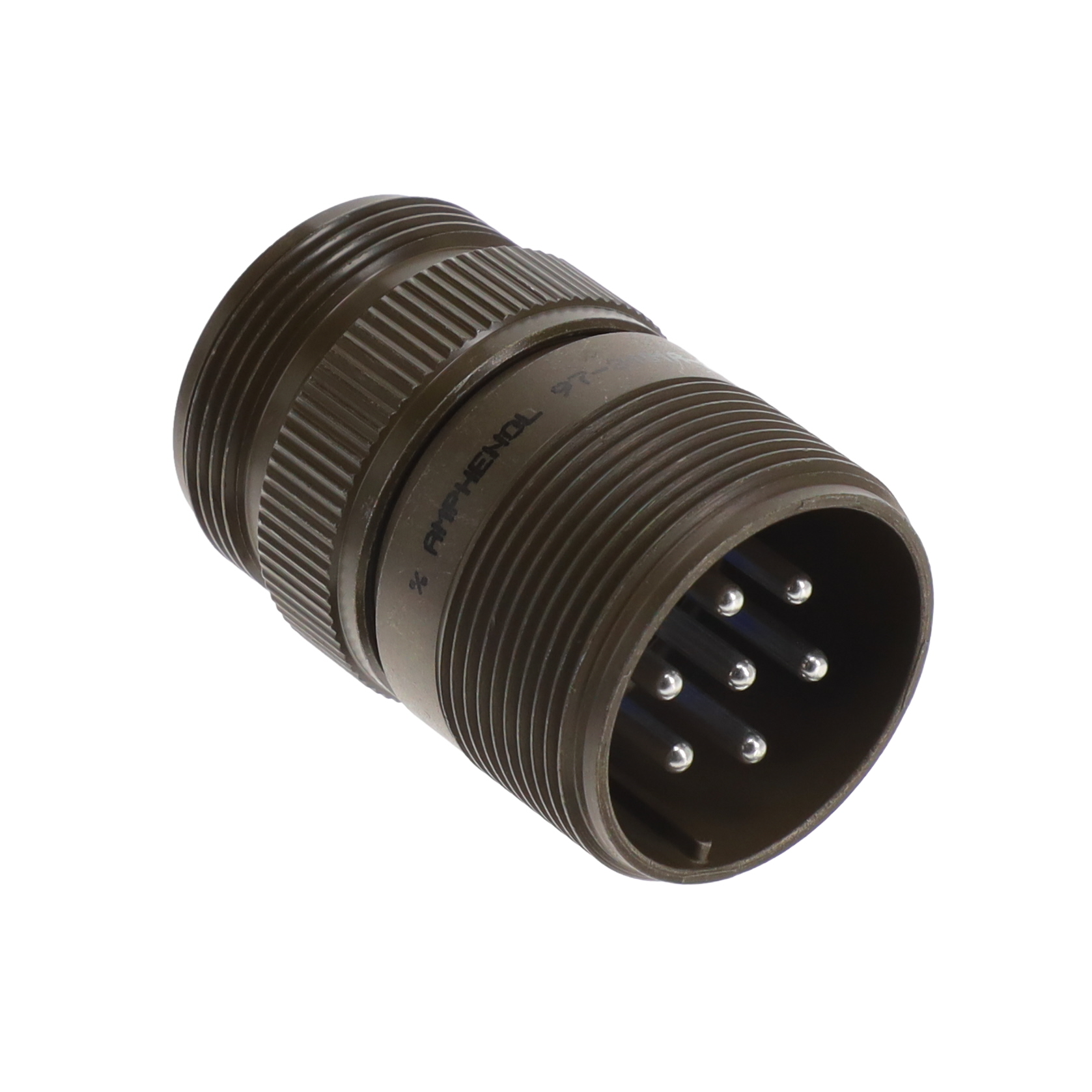

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3101A-20-15P
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3101A-20-15P
Description: 7 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet: 97-3101A-20-15P – Datasheet
$30.62
| Quantity | Price |
|---|---|
| 5 | $30.62 |
| 10 | $29.74 |
| 25 | $28.52 |
| 50 | $27.76 |
| 100 | $25.63 |
| 250+ | $25.13 |
