| Connector Type | Receptacle, Female Sockets |
| Number Of Positions | 5 |
| Shell Size – Insert | 16S-8 |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish – Mating | Silver |
| Color | Olive Drab |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |

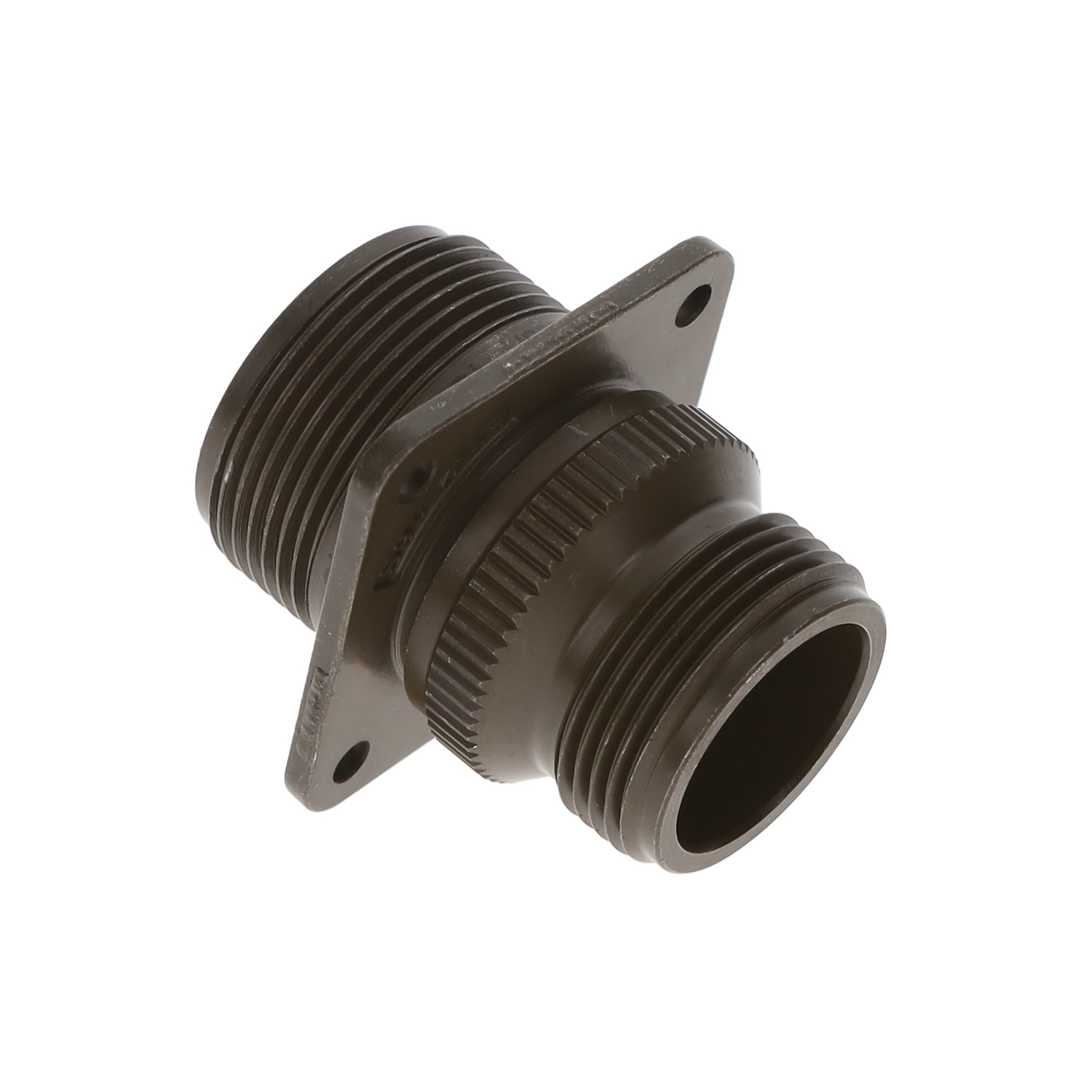

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
97-3100A-16S-8S
Manufacturer: Amphenol Industrial Operations
Part Number: 97-3100A-16S-8S
Description: 5 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet: 97-3100A-16S-8S – Datasheet
$21.31
| Quantity | Price |
|---|---|
| 5 | $21.31 |
| 10 | $20.70 |
| 25 | $19.85 |
| 50 | $19.32 |
| 100 | $17.80 |
| 250+ | $17.45 |
