| Mounting Type | Through Hole |
| Coil Voltage | 10VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 8:00 AM |
| Switching Voltage | 400VAC, 250VDC – Max |
| Features | Sealed – Fully |
| Termination Style | PC Pin |
| Must Operate Voltage | 8 VDC |
| Operate Time | 15 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
56.OW69.1000S
Manufacturer: Altech Corporation
Part Number: 56.OW69.1000S
Description: RELAY SAFETY DPDT 8A 10V
Datasheet: 56.OW69.1000S – Datasheet

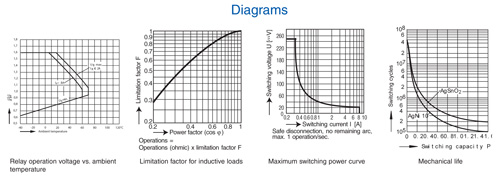

Drawing: View Drawing
$26.65
| Quantity | Price |
|---|---|
| 10 | $26.65 |
| 50+ | $25.33 |
