| Mounting Type | Panel Mount, Front |
| Type | Standard |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 15A (AC), 220mA (DC) |
| Voltage Rating – AC | 120 V |
| Voltage Rating – DC | 125 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color – Actuator/Cap | Black |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65 – Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Circular – 22.50mm Dia |
| Operating Temperature | -25°C ~ 85°C |

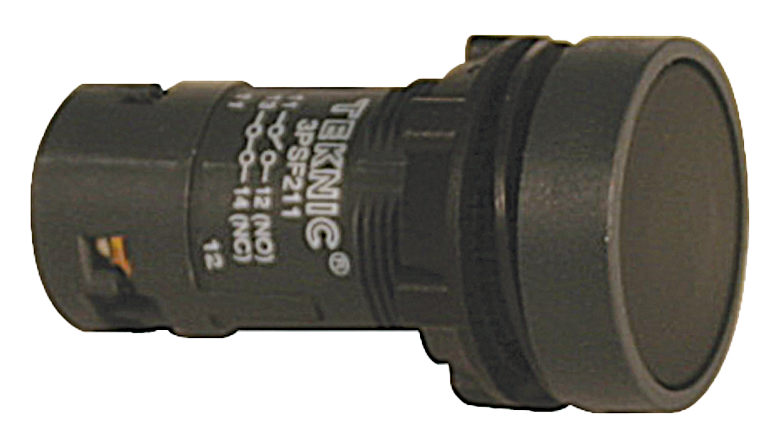

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
3PSF210
Manufacturer: Altech Corporation
Part Number: 3PSF210
Description: PUSH BUTTON ECONOMY 22MM MOM FLU
Datasheet: 3PSF210 – Datasheet
Drawing: View Drawing
$7.47
| Quantity | Price |
|---|---|
| 1 | $7.47 |
| 10 | $7.27 |
| 50+ | $6.82 |
