| Number of Levels | 1 |
| Positions Per Level | 2 |
| Pitch | 0.200" (5.08mm) |
| Mating Orientation | 45° (135°) Angle with Board |
| Current | 15 A |
| Voltage | 300 V |
| Wire Gauge | 12-22 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw – Rising Cage Clamp |
| Features | Interlocking (Side) |
| Color | Gray |

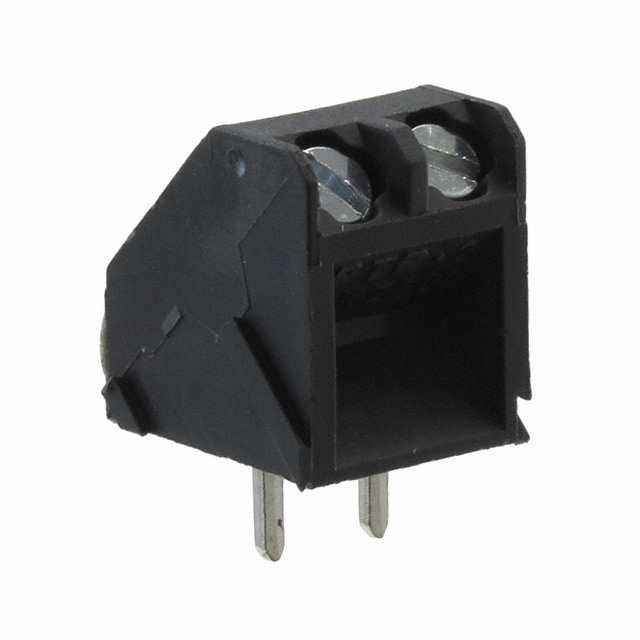

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
30.652
Manufacturer: Altech Corporation
Part Number: 30.652
Description: TERM BLOCK 45DEG 2P 58MM 15A GRY
Datasheet: 30.652 – Datasheet
$0.72
