| Type | Plug for Unshrouded Header |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Plug Wire Entry | 90° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current – IEC | 10A |
| Voltage – IEC | 250 V |
| Current – UL | 10:00 AM |
| Voltage – UL | 300 V |
| Wire Gauge or Range – AWG | 14-22 AWG |
| Wire Gauge or Range – mm² | 0.5-1.5mm² |
| Color | Gray |
| Features | Interlocking (Side) |

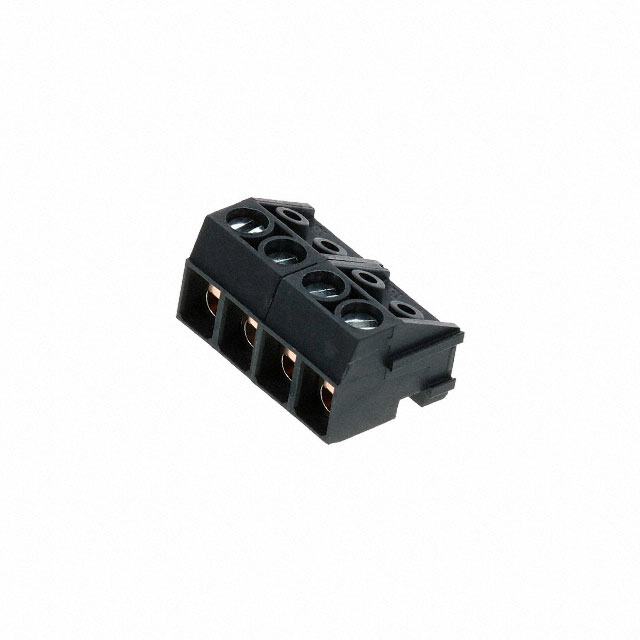

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
30.304
Manufacturer: Altech Corporation
Part Number: 30.304
Description: TERM BLOCK PLUG 4POS 5MM
Datasheet: 30.304 – Datasheet
$1.08
