| Connector Type | Plug, Female Sockets |
| Number Of Positions | 8 |
| Shell Size – Insert | 14-61 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Fastening Type | Reverse Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Anodized |
| Contact Finish – Mating | Gold |
| Color | Gray |
| Ingress Protection | Waterproof |
| Features | Coupling Nut, Potted |
| Shielding | Unshielded |
| Current Rating (Amps) | 10A |
| Voltage Rating | 500VAC |

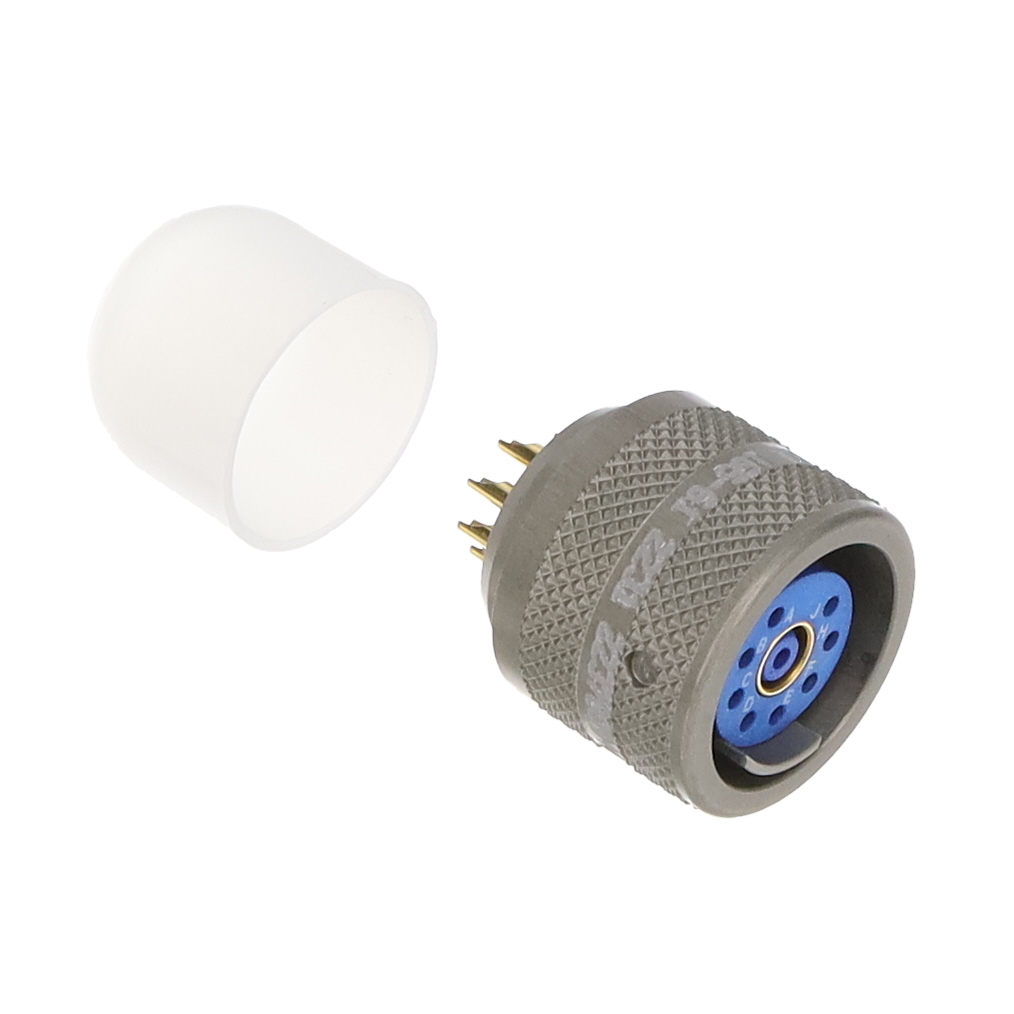

⚠️ Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
165-61
Manufacturer: Amphenol Aerospace Operations
Part Number: 165-61
Description: 8 Position Circular Connector Plug, Female Sockets Crimp
